QSFP-100G Modules: A Complete Guide to Features and Specs Explained
Have you ever wondered what enables the backbone of ultra-fast data transmission in modern data centers and enterprise networks? QSFP-100G modules are key players in delivering 100 Gigabit per second speeds with remarkable efficiency and reliability. These compact yet powerful transceivers have transformed how large-scale networks handle massive data flows by balancing performance, reach, and power consumption. In this guide, we will break down the features and technical specifications of QSFP-100G modules, providing clear insights into their variants such as qsfp 40 100 srbd, qsfp 100g lr4 s, and qsfp 100g sr4, to help network professionals and enthusiasts make informed decisions.
Introduction to QSFP-100G Modules
What Is QSFP-100G?
QSFP-100G stands for Quad Small Form-factor Pluggable, supporting 100 Gigabit Ethernet speeds. This module type is designed to aggregate four lanes of high-speed data transmission, typically 25 Gbps each, into a single compact transceiver. Its small footprint and low power consumption compared to older form factors allow for higher port densities in networking equipment like switches, routers, and servers. The QSFP-100G modules comply with various industry standards ensuring interoperability and high performance.
QSFP-100G vs Older Transceiver Types
Compact Form Factor and High Port Density
The QSFP-100G modules occupy minimal board space, allowing equipment manufacturers to fit more high-speed ports on a single device. This maximizes available bandwidth per rack unit, an important factor for data centers aiming to scale without expanding physical infrastructure.
Multi-Lane Electrical Interface and Wavelength Multiplexing
QSFP-100G employs four parallel lanes each carrying 25 Gbps. In optical variants like qsfp 100g lr4 s, these lanes can be wavelength multiplexed over single-mode fiber, which supports longer reach. This lane and wavelength multiplexing flexibility enable applications across short, medium, and long distances.
High-performance QSFP, QSFP28 & QSFP-DD transceivers for 40G/100G/200G/400G networks. Fast UAE & Saudi delivery, certified quality, and lifetime warranty.
Common Types and Variants of QSFP-100G Modules
QSFP 100G SR4: Short-Range With MPO Connectors
The QSFP 100g SR4 module is designed to operate over multimode fiber using eight fibers, four transmitting and four receiving. Typically transmitting at 850 nm wavelength, it supports distances up to 100 meters on OM4 fiber and around 70 meters on OM3. The MPO (MTP) connector type facilitates parallel optics transmission and reception. This type is ideal for in-rack and data center interconnects requiring high bandwidth at short distances.
QSFP 100G LR4 S: Long-Range Single-Mode Module
For longer distance applications, like connecting buildings or metro networks, the qsfp 100g lr4 s module comes into play. Using long-wavelength lasers, typically around 1310 nm, it supports transmission distances of up to 10 kilometers over single-mode fiber. By multiplexing four wavelengths via CWDM (Coarse Wavelength Division Multiplexing), the LR4 S efficiently maintains the full 100G speed over greater distances while using duplex LC connectors.
QSFP 40 100 SRBD: Bi-Directional Multi-Rate Transceiver

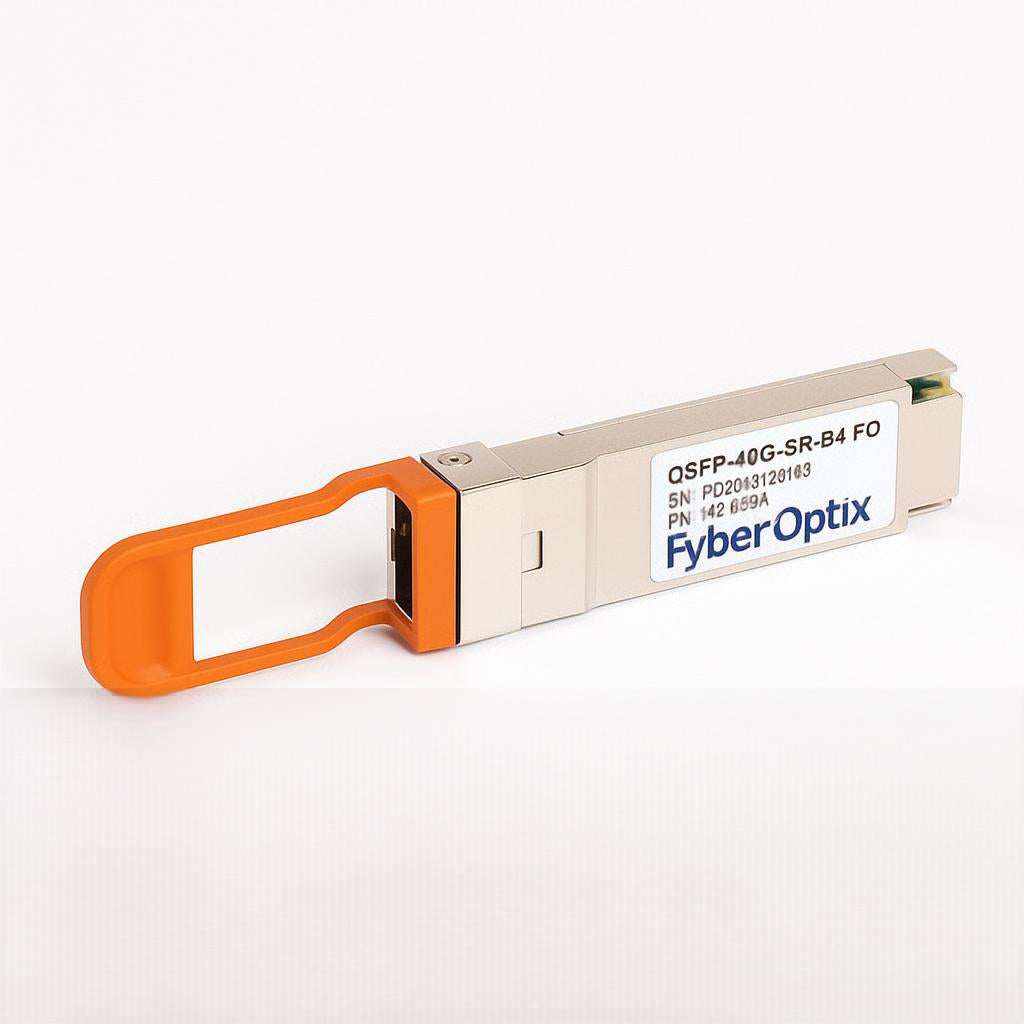

The QSFP 40 100 SRBD is a versatile transceiver supporting both 40G and 100G transmission speeds, often used by network operators transitioning between standards. It utilizes bi-directional (BIDI) technology, which significantly reduces fiber usage by transmitting and receiving data on a single fiber. This flexible module typically supports short reach and is well suited for legacy or mixed-technology environments.
Get customer attention by clean visual and video
Technical Specifications Breakdown
Physical Interface and Connector Types
QSFP-100G modules typically support one of two main connector types:
MPO/MTP Connectors: Used in parallel optical modules like qsfp 100g sr4, supporting multiple fibers for transmitting and receiving simultaneously.
Duplex LC Connectors: Found in wavelength multiplexed modules such as qsfp 100g lr4 s variants, which use fewer fibers by combining channels onto different wavelengths.
Wavelengths and Laser Technologies
QSFP-100G modules use several laser types optimized for their target reach:
VCSEL (Vertical-Cavity Surface-Emitting Laser): Common in short-reach SR4 modules operating at 850 nm.
EML (Electro-Absorption Modulated Laser): Favored for LR4 S and longer-reach CWDM applications at 1310 nm due to better dispersion handling.
DML (Directly Modulated Laser): Sometimes used in intermediate-range modules like PSM4 and CWDM4 variants.
Applications of QSFP-100G Modules
Data Center Interconnects
The primary use case for QSFP-100G modules is in data centers where large volumes of data must be transferred rapidly between servers and network equipment. Modules like qsfp 100g sr4 serve within racks for short connections, while lr4 s modules connect data centers over metro distances.
Enterprise Networks and Telecommunications
Enterprises increasingly rely on qsfp 40 100 srbd modules to move from 40G to 100G capacity without extensive fiber infrastructure upgrades. Telecom providers also use qsfp 100g lr4 s variants for efficient backbone connectivity spanning kilometers.
How to Choose the Right QSFP-100G Module? Assess Your Distance Requirements
Identifying the distance between connected devices is critical. For up to 100 meters, qsfp 100g sr4 is cost-effective and efficient. For medium-range up to 2 km, fiber-efficient QSFP CWDM modules or bi-directional options may fit. Long-range links beyond 10 km should consider qsfp 100g lr4 s or er4 modules.
Consider Fiber Type and Connector Compatibility
Check if your network uses single-mode or multimode fiber, and confirm connector types match. Multimode supports SR4 modules, while single-mode fibers are compatible with LR4 S and CWDM4 variants.
Power and Cooling Constraints
Some QSFP-100G modules consume more power due to laser types or signal processing. Environments with strict power or thermal budgets benefit from lower-power variants like SR4 employing VCSELs.
Summary and Next Steps
In summary, understanding the unique features, technical specs, and applications of QSFP-100G modules—such as qsfp 40 100 srbd, qsfp 100g lr4 s, and qsfp 100g sr4—allows network architects to choose the best transceiver for their environment. These modules provide high-speed, scalable, and cost-efficient solutions for data centers, enterprise networks, and telecom infrastructures. To ensure optimal network performance, evaluate your distance, fiber type, connectivity, and power needs carefully. Ready to enhance your network’s capabilities? Explore our selection of QSFP-100G modules and learn how to deploy them effectively in your setup today.
