SFPS NVIDIA/Mellanox MCP7Y60-H001 Compatible DAC 1m (3ft) 400Gb/s OSFP (Finned Top) to 2x200Gb/s QSFP56 InfiniBand HDR Passive Copper Splitter Cable

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

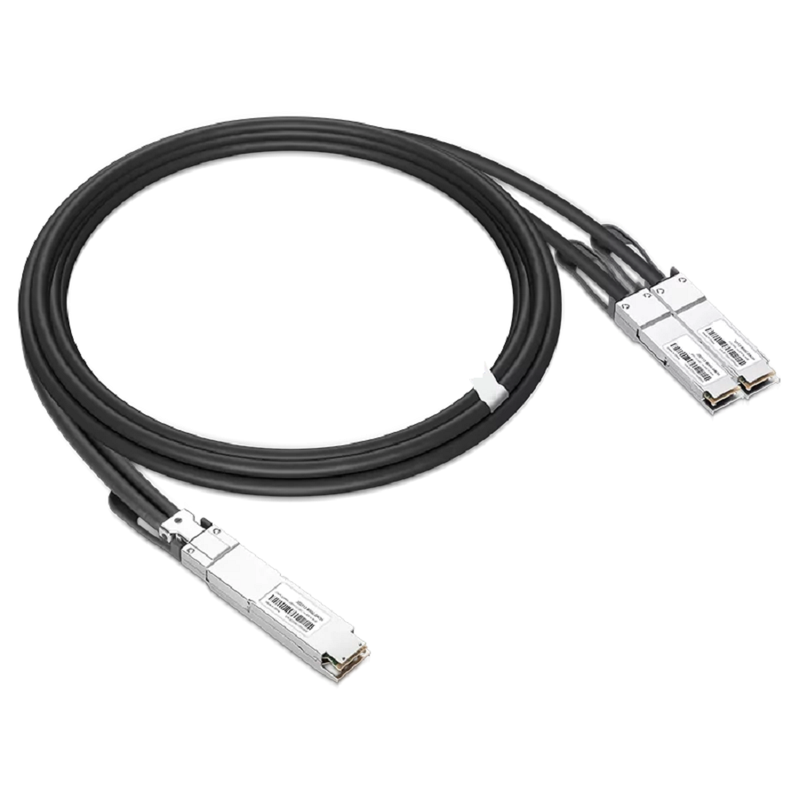

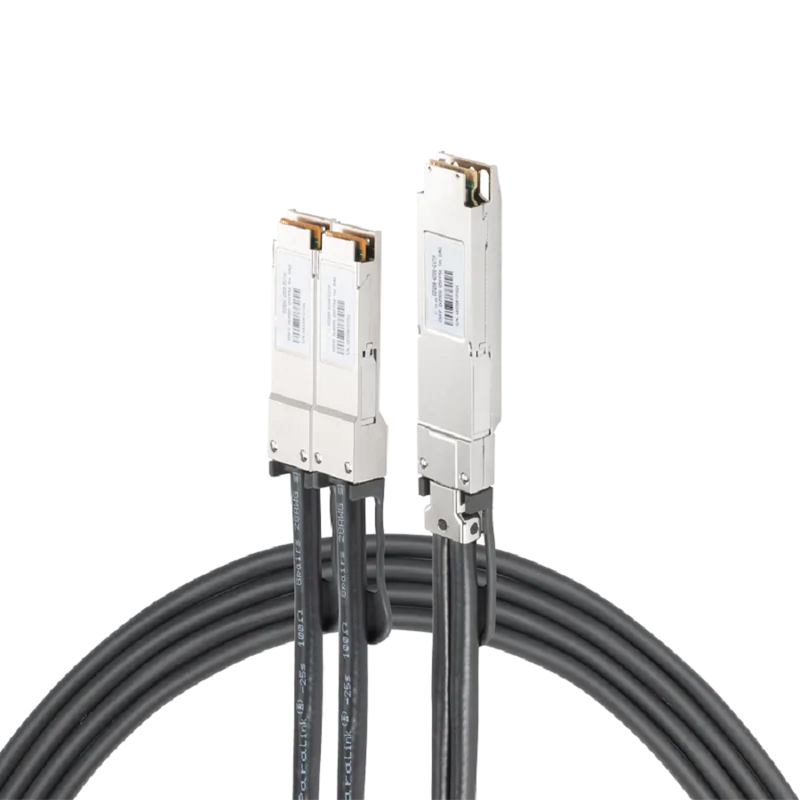

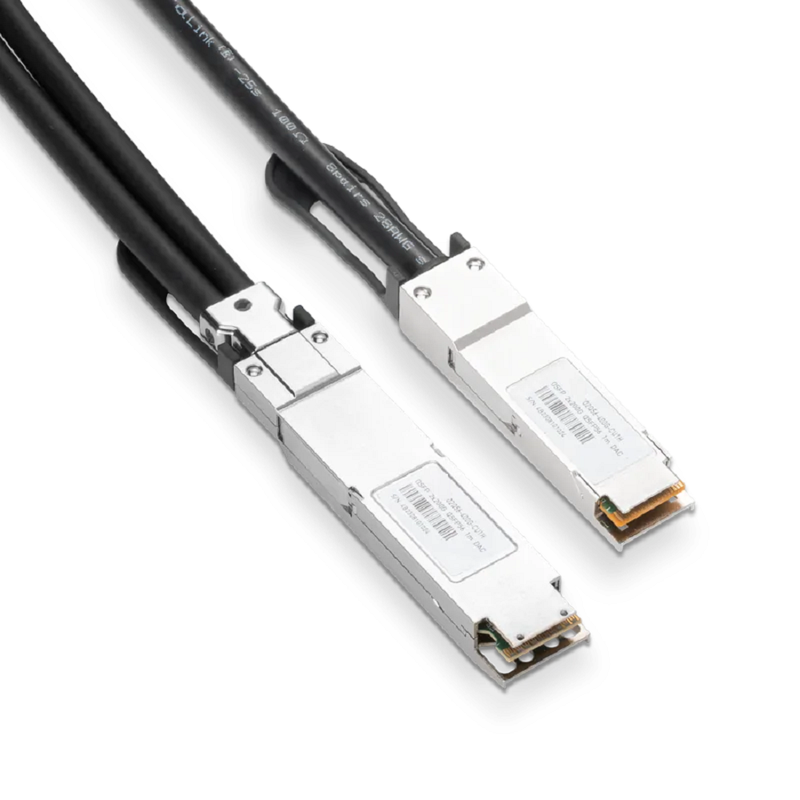

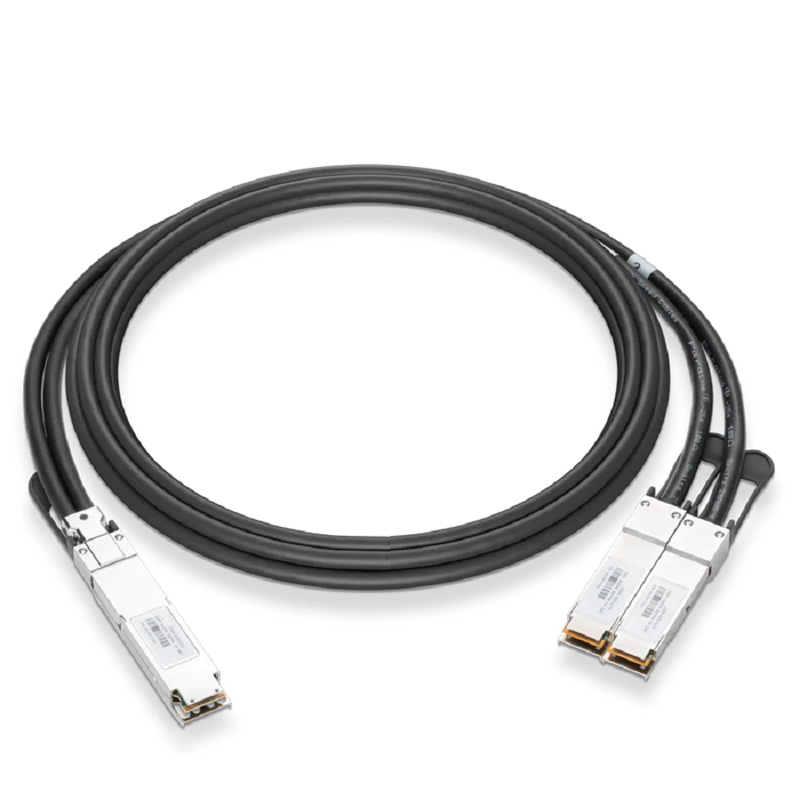

SFPS O2Q56-400G-CU1H is a passive Direct Attach Copper (DAC) cable with an OSFP-based twin-port 2x 200Gb/s connector to two 200Gb/s QSFP56s, and is a high-speed 200Gb/s splitter cable for InfiniBand and Ethernet networking. The DAC firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to.The 8-channel twin-port OSFP end uses a finned top form-factor for use in Quantum-2 and Spectrum-4 switch cages. The two 400G ends support 4-channels of 50G-PAM4 (200GbE/HDR) and use a flat top QSFP56 for use in ConnectX-6/7 adapters and BlueField-2/3 DPUs using riding heat sinks on the connector cage.

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
