SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS

SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max.

OS2, 3x MTP-8 to LC Shuttered, Universal
$403.00
$403.00 $520.00
Skip to product information
SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
  • SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max. SFPS
SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max.

SFPS FHDA MTP®-LC Cassette, OS2 Single Mode, Universal, 24 Fibers, 3 x MTP®-8 (Male) to 12 x Shuttered LC Duplex (Blue), 0.35dB Max.

ModelOS2, 3x MTP-8 to LC Shuttered, Universal

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

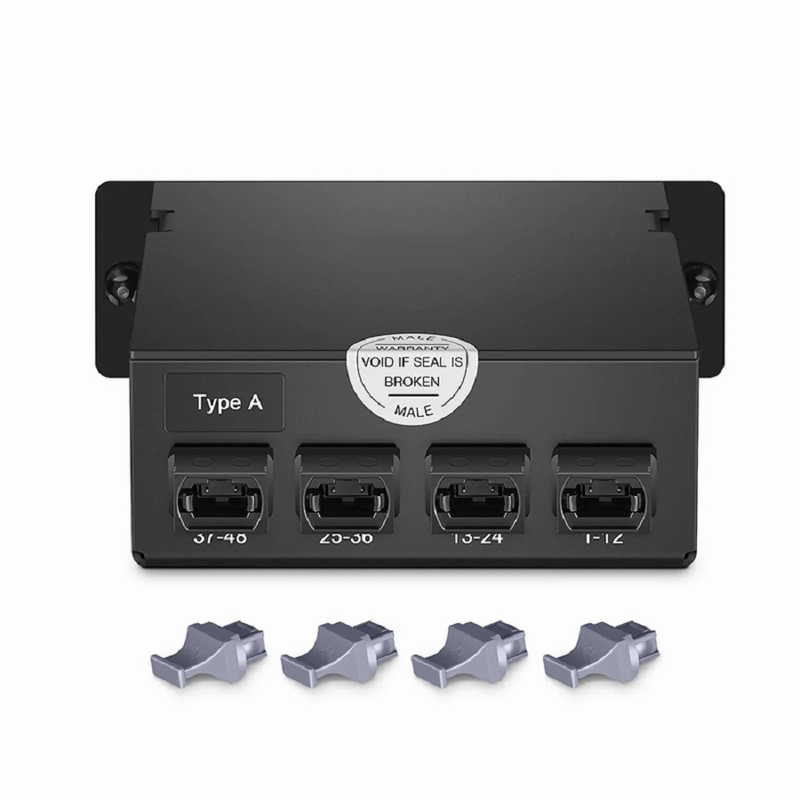

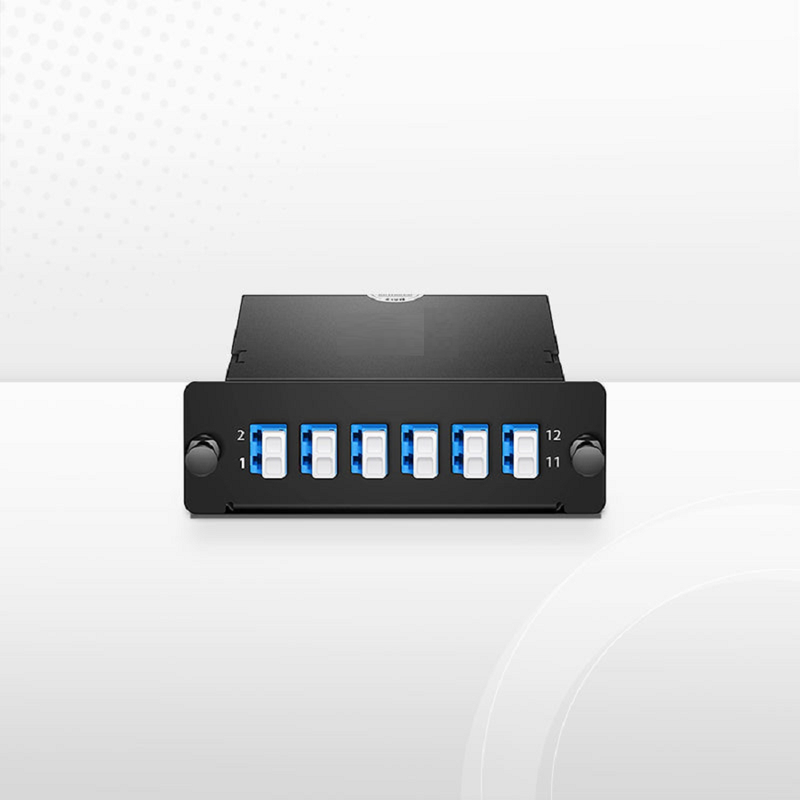

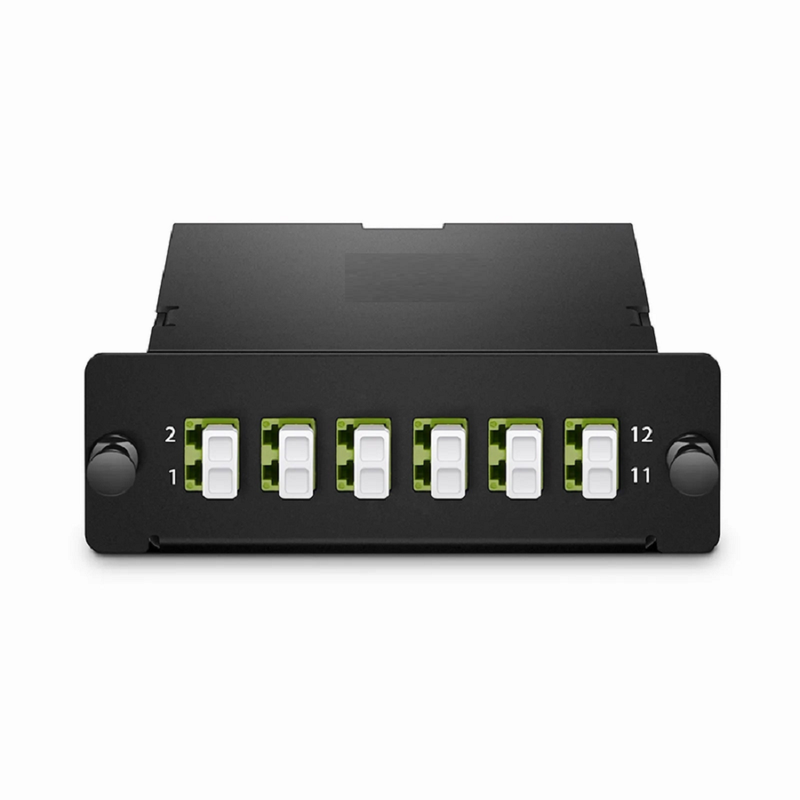

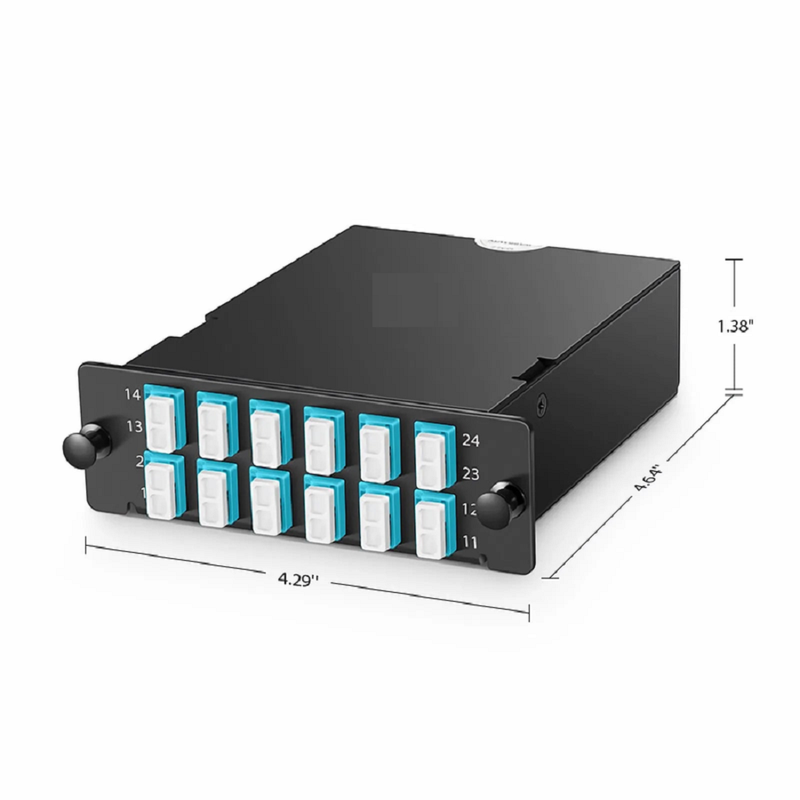

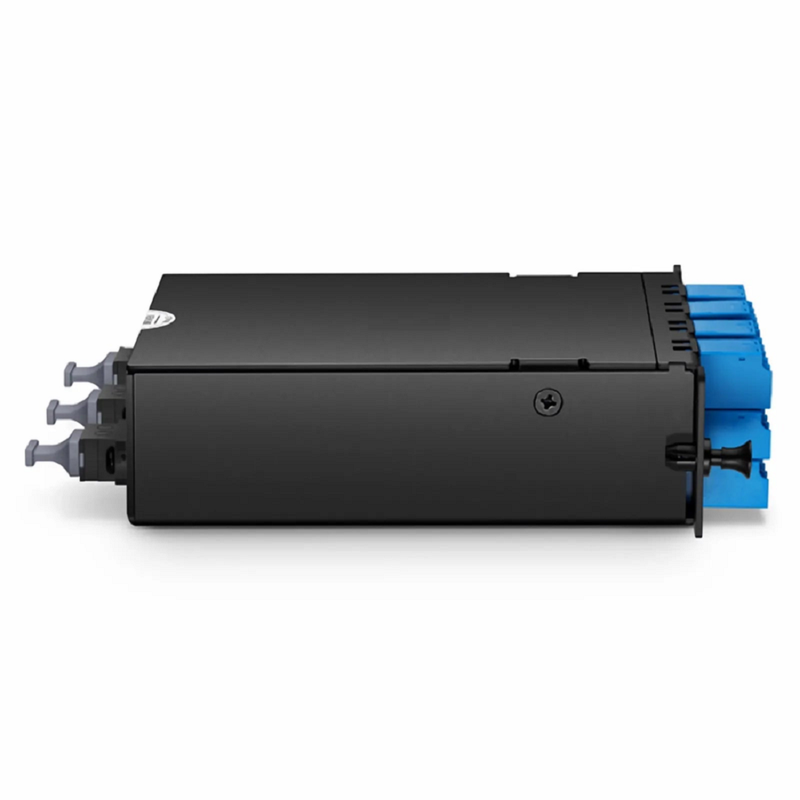

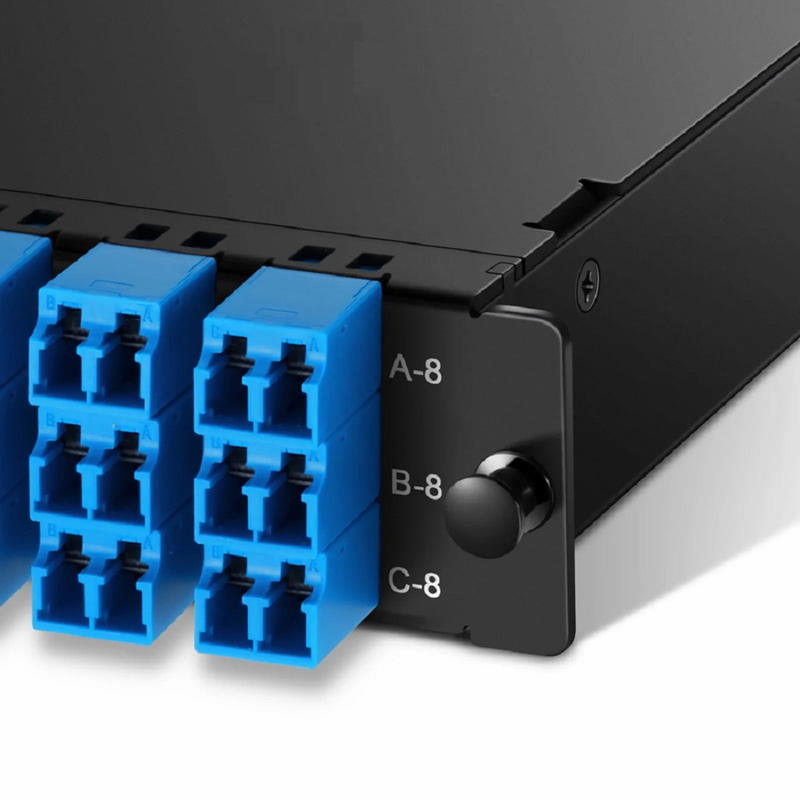

FHD® (SFPS High Density) series MTP fiber cassette modules are pre-terminated, pre-tested, and come with an 8-fiber MTP adapter on the rear of the units routed to 12 duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications. The MTP-8 cassette is ideal for deployments including 40G to 10G, 100G to 25G and 400G to 100G. Universal polarity to be used at both ends of a Method B trunk reduces the complexity of a fiber network, ensuring consistent polarity, and streamlining network maintenance. Corresponding to the line sequence of the rear MTP adapters, the front LC adapters are optimized to be arranged horizontally in each group, which conforms to the customer's usage behaviour. The cassette is suitable for conventional 3-tier cabling schemes and spine-leaf cabling schemes. This Base-8 MTP fiber cassette is designed to upgrade existing LC links to SR4 parallel optics without wasting any of the fibers inside the cable

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
