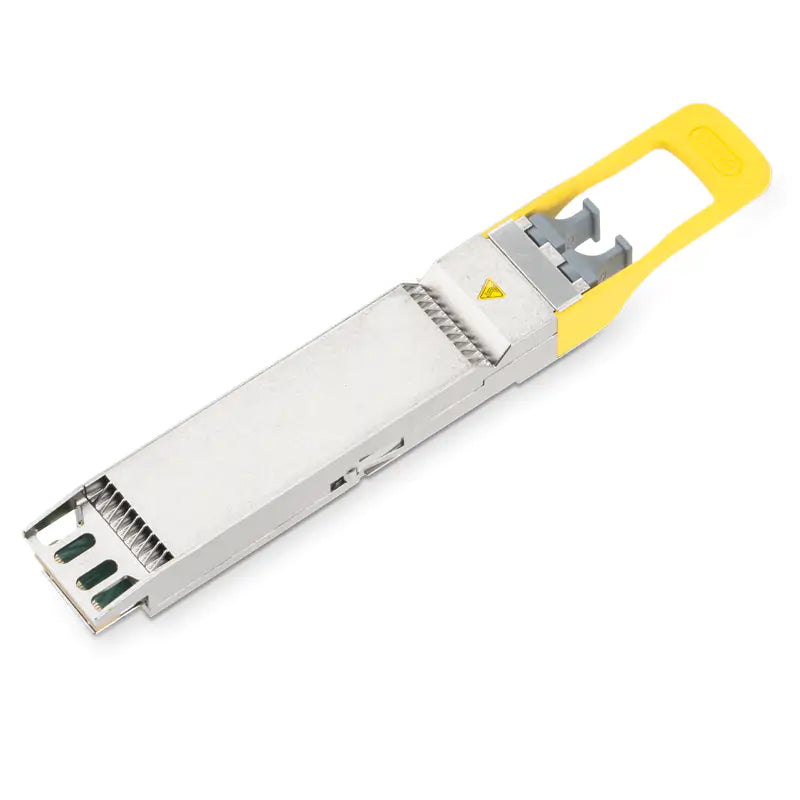

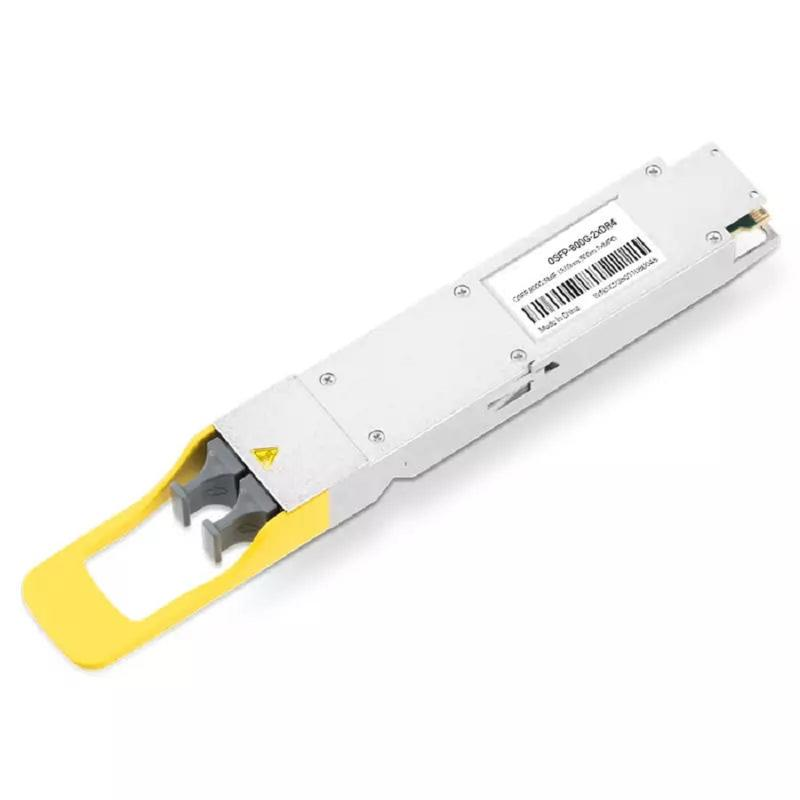

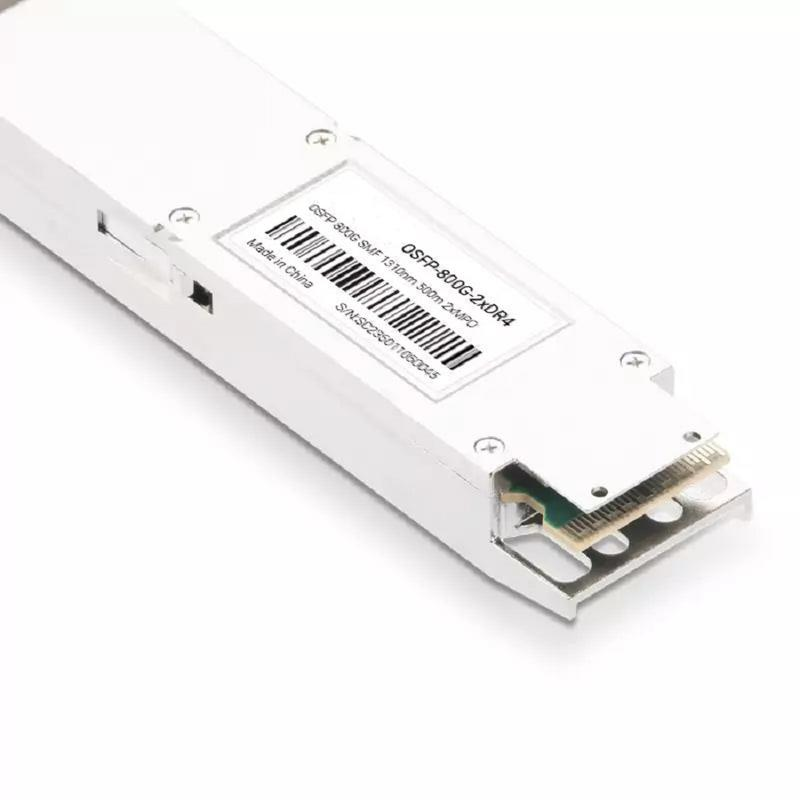

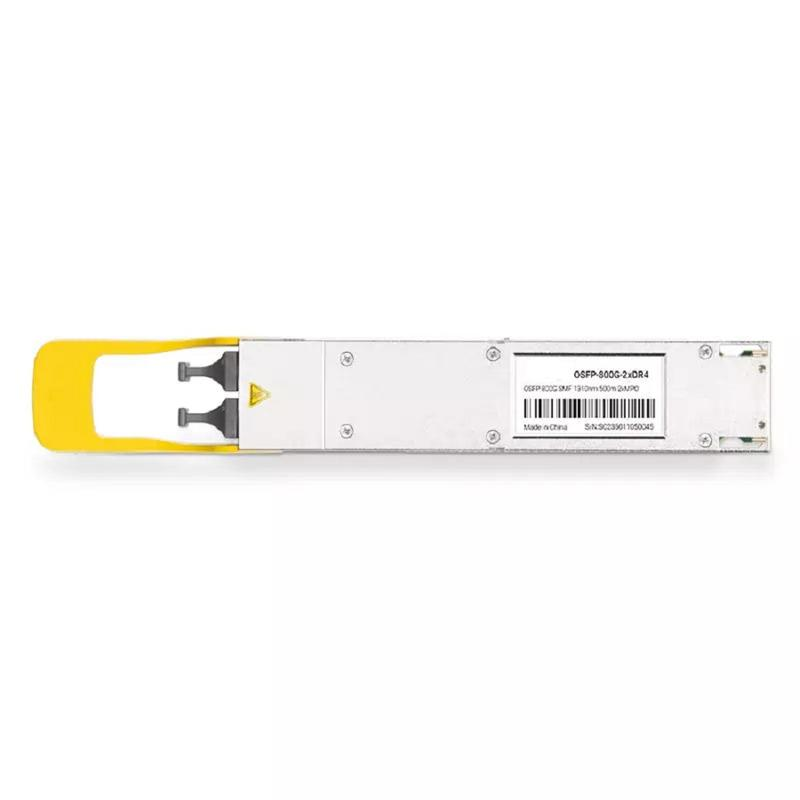

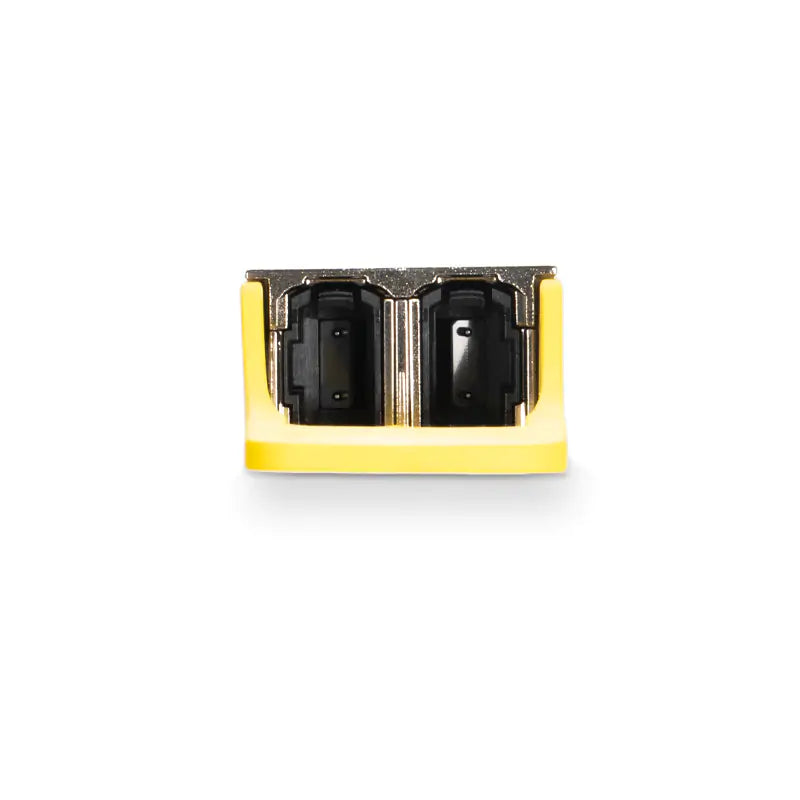

Arista OSFP-800G-2xDR4 Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DDM Dual MPO/MTP-12 SMF Optical Transceiver Module for 7060X6-64PE Switch
OSFP-800G-2xDR4
$1,499.00
Sale price
$1,499.00
Regular price
$1,948.00
Skip to product information
Description
NADDOD Arista OSFP-800G-2xDR4 compatible optical transceiver is a high-speed, low-latency, and cost-effective module designed for 800G Ethernet applications in AI/HPC data centers and cloud networks. It supports link lengths of up to 500 meters over single-mode fiber (SMF) using dual MTP/MPO-12 (12-fiber) connectors. The module performs 8-channel 106.25Gb/s electro-optical conversion on the transmitter side and 8-channel 106.25Gb/s optical-to-electrical conversion on the receiver side, enabling reliable high-speed data transmission. The transceiver also supports breakout configurations with 2×400G DR4/DR8 links, providing flexible deployment options for high-performance Ethernet networks. Its low-latency, high-bandwidth capabilities make it ideal for AI and HPC data center interconnects, cloud networking, and other demanding high-performance computing applications.
Arista OSFP-800G-2xDR4 Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DDM Dual MPO/MTP-12 SMF Optical Transceiver Module for 7060X6-64PE Switch
$1,499.00
Sale price
$1,499.00
Regular price
$1,948.00
NADDOD Arista OSFP-800G-2xDR4 compatible optical transceiver is a high-speed, low-latency, and cost-effective module designed for 800G Ethernet applications in AI/HPC data centers and cloud networks. It supports link lengths of up to 500 meters over single-mode fiber (SMF) using dual MTP/MPO-12 (12-fiber) connectors. The module performs 8-channel 106.25Gb/s electro-optical conversion on the transmitter side and 8-channel 106.25Gb/s optical-to-electrical conversion on the receiver side, enabling reliable high-speed data transmission. The transceiver also supports breakout configurations with 2×400G DR4/DR8 links, providing flexible deployment options for high-performance Ethernet networks. Its low-latency, high-bandwidth capabilities make it ideal for AI and HPC data center interconnects, cloud networking, and other demanding high-performance computing applications.
