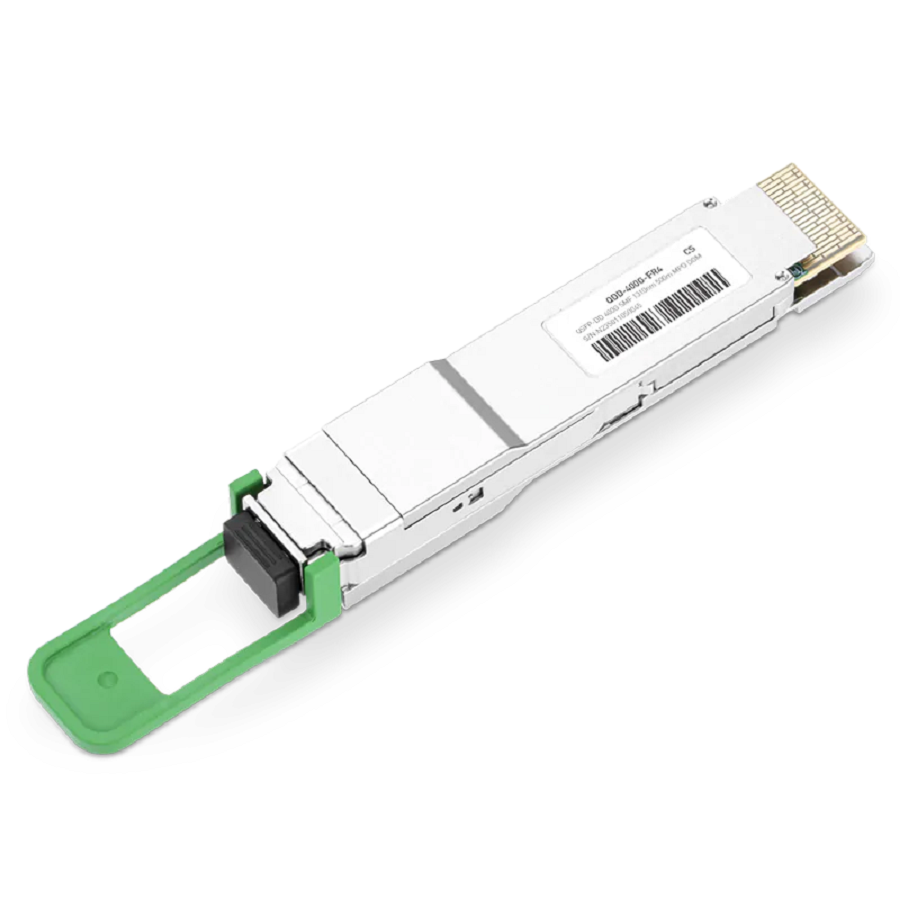

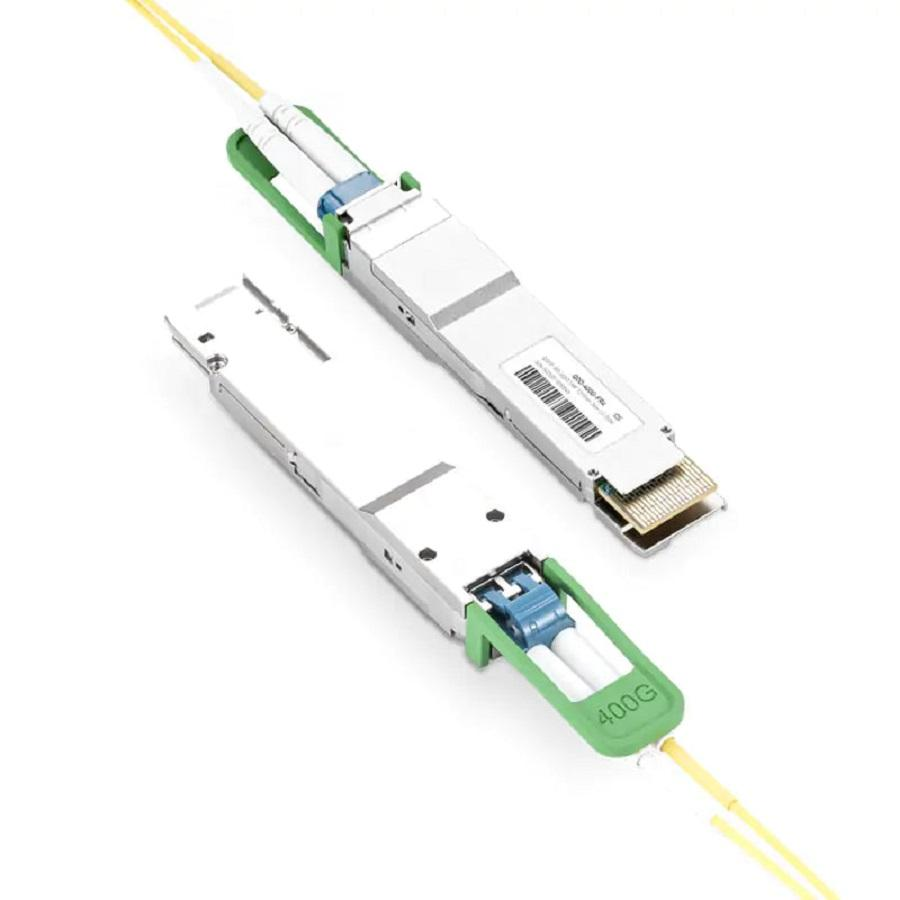

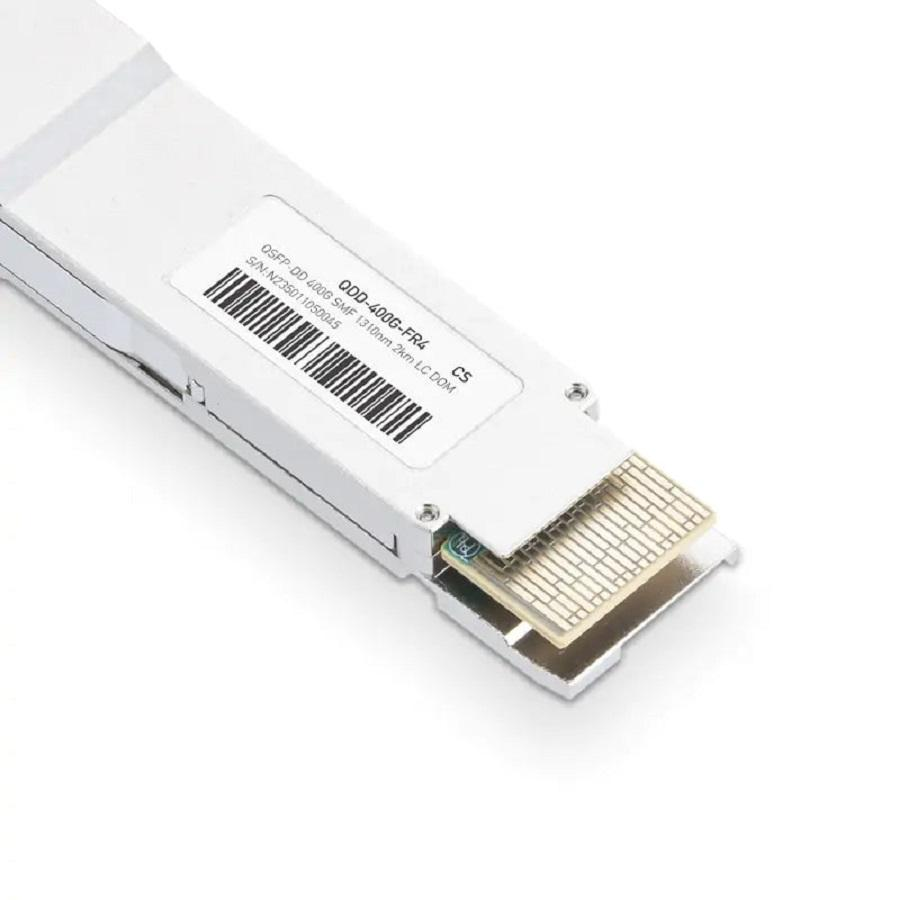

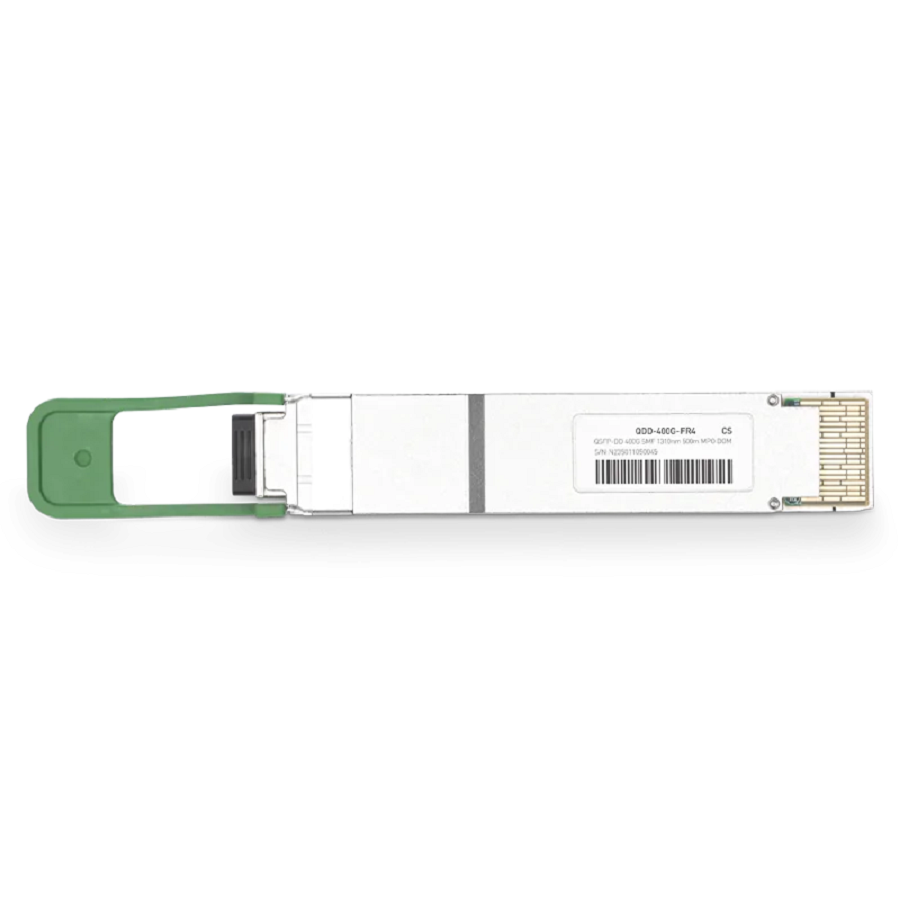

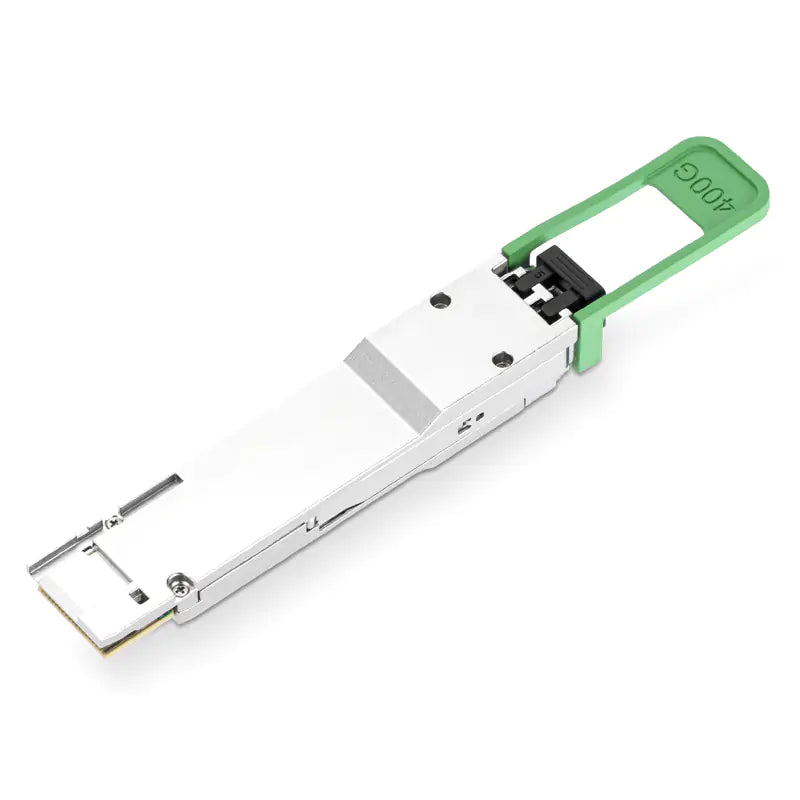

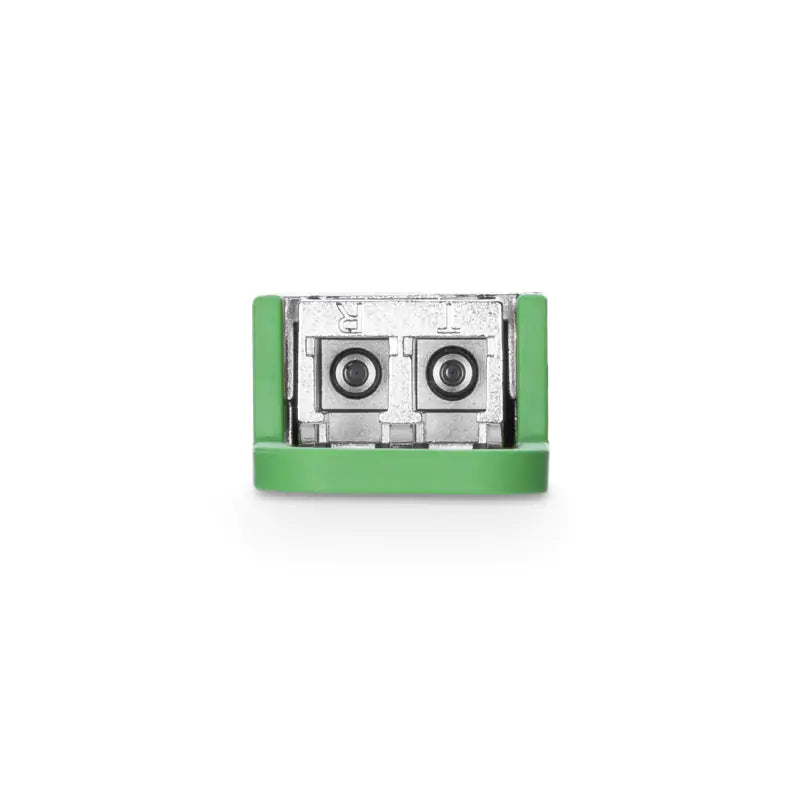

Cisco QDD-400G-FR4-S Compatible 400GBASE-FR4 QSFP-DD PAM4 1310nm 2km DDM/DOM Duplex LC SMF Optical Transceiver Module
QDD-400G-FR4
$959.00
Sale price
$959.00
Regular price
$1,246.00
Skip to product information
Description
NADDOD Cisco QDD-400G-FR4-S Compatible QDD-400G-FR4 optical transceiver features a duplex LC connector and supports transmission distances of up to 2 km over parallel single-mode fiber. It converts eight 50 Gb/s PAM4 electrical signals into four CWDM optical channels, multiplexed into a single 400 Gb/s optical link. On the receiving side, the 400 Gb/s optical signal is demultiplexed into four CWDM channels and converted back into eight 50 Gb/s PAM4 electrical outputs. The CWDM wavelengths are 1271, 1291, 1311, and 1331 nm. The 400G QSFP-DD FR4 transceiver is designed specifically for interconnecting data centers, 400G Ethernet. It is typically paired with a 400G QSFP-DD network card and connected to one of the ports of a dual-port 800 Gb/s 2x400G OSFP transceiver, making it ideal for AI Data Center (AIDC) and Data Center Network (DCN) deployments.
Cisco QDD-400G-FR4-S Compatible 400GBASE-FR4 QSFP-DD PAM4 1310nm 2km DDM/DOM Duplex LC SMF Optical Transceiver Module
$959.00
Sale price
$959.00
Regular price
$1,246.00
NADDOD Cisco QDD-400G-FR4-S Compatible QDD-400G-FR4 optical transceiver features a duplex LC connector and supports transmission distances of up to 2 km over parallel single-mode fiber. It converts eight 50 Gb/s PAM4 electrical signals into four CWDM optical channels, multiplexed into a single 400 Gb/s optical link. On the receiving side, the 400 Gb/s optical signal is demultiplexed into four CWDM channels and converted back into eight 50 Gb/s PAM4 electrical outputs. The CWDM wavelengths are 1271, 1291, 1311, and 1331 nm. The 400G QSFP-DD FR4 transceiver is designed specifically for interconnecting data centers, 400G Ethernet. It is typically paired with a 400G QSFP-DD network card and connected to one of the ports of a dual-port 800 Gb/s 2x400G OSFP transceiver, making it ideal for AI Data Center (AIDC) and Data Center Network (DCN) deployments.
