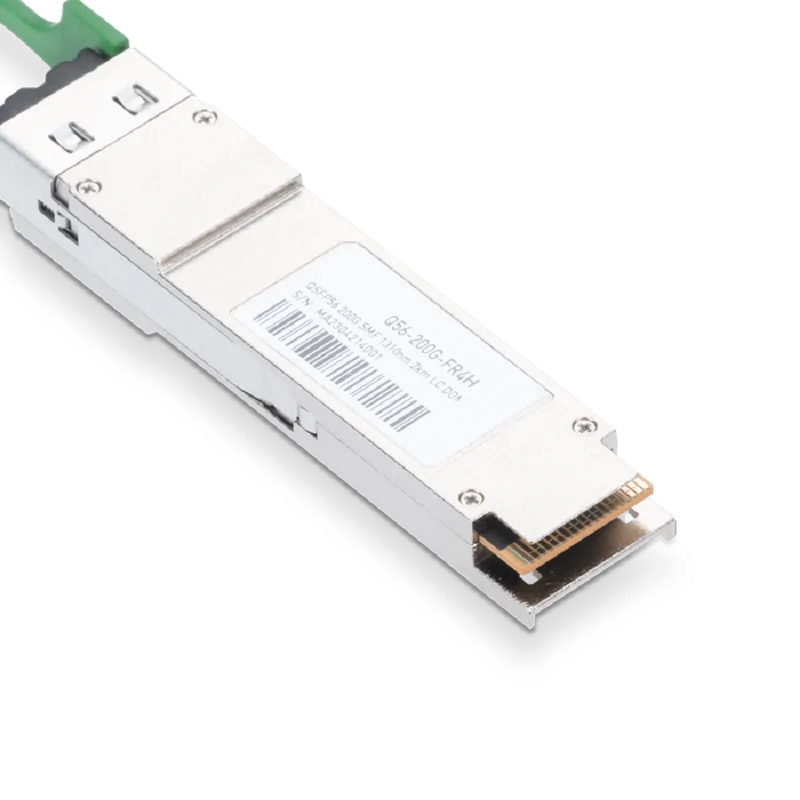

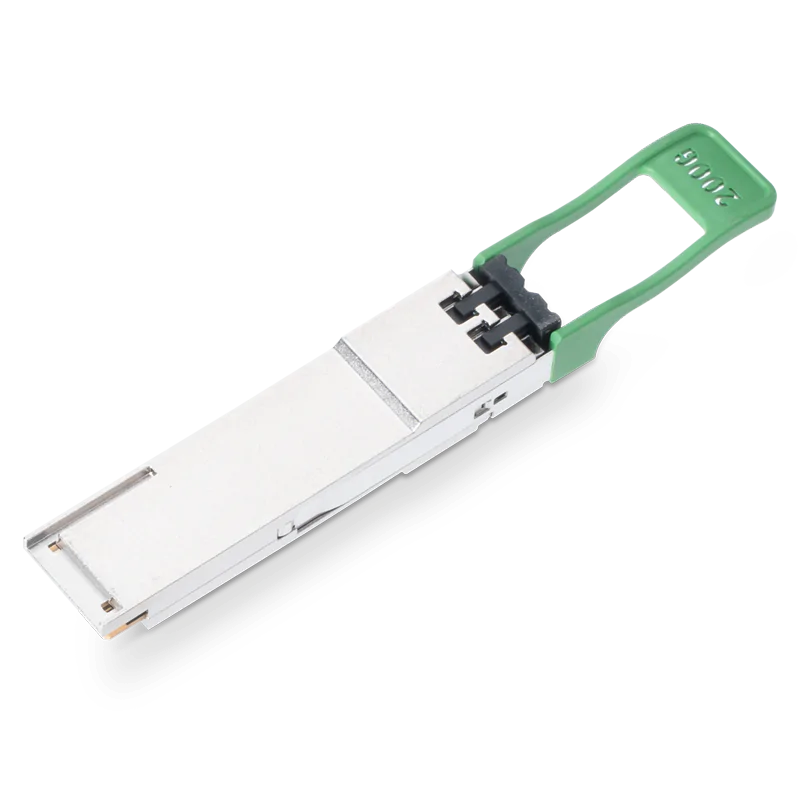

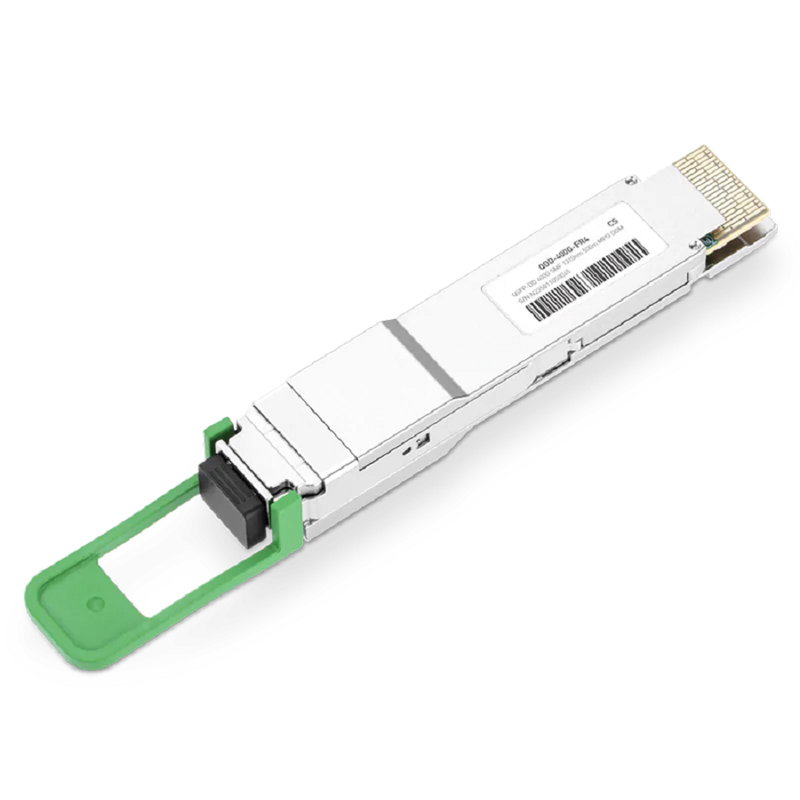

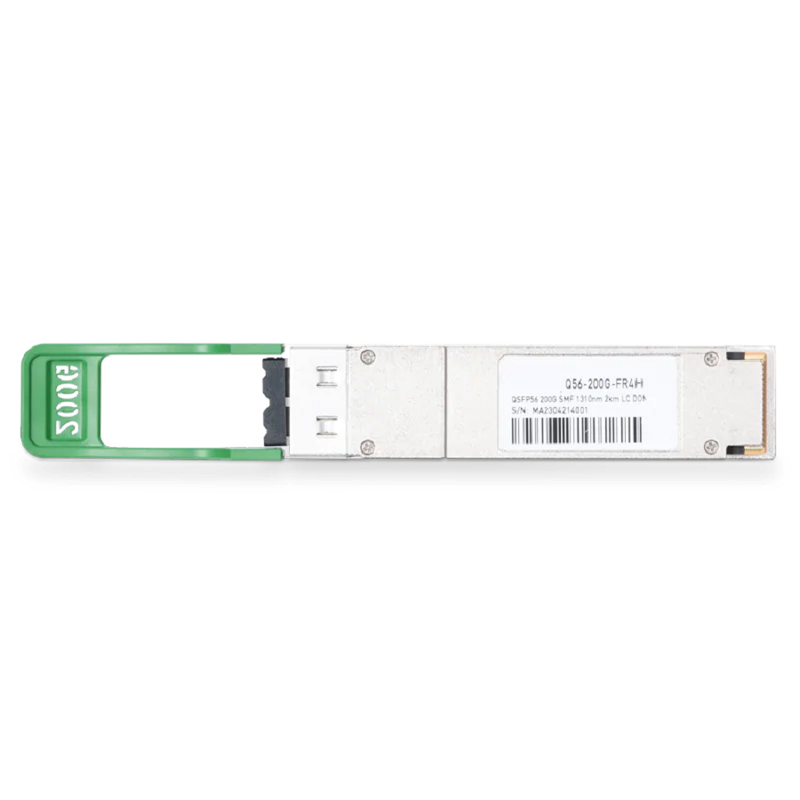

NVIDIA/Mellanox MMS1W50-HM Compatible 200GBASE-FR4 QSFP56 PAM4 1310nm 2km DOM LC Duplex InfiniBand HDR Transceiver Module for SMF
Q56-200G-FR4H
$1,349.00
Sale price
$1,349.00
Regular price
$1,753.00
Skip to product information
Description

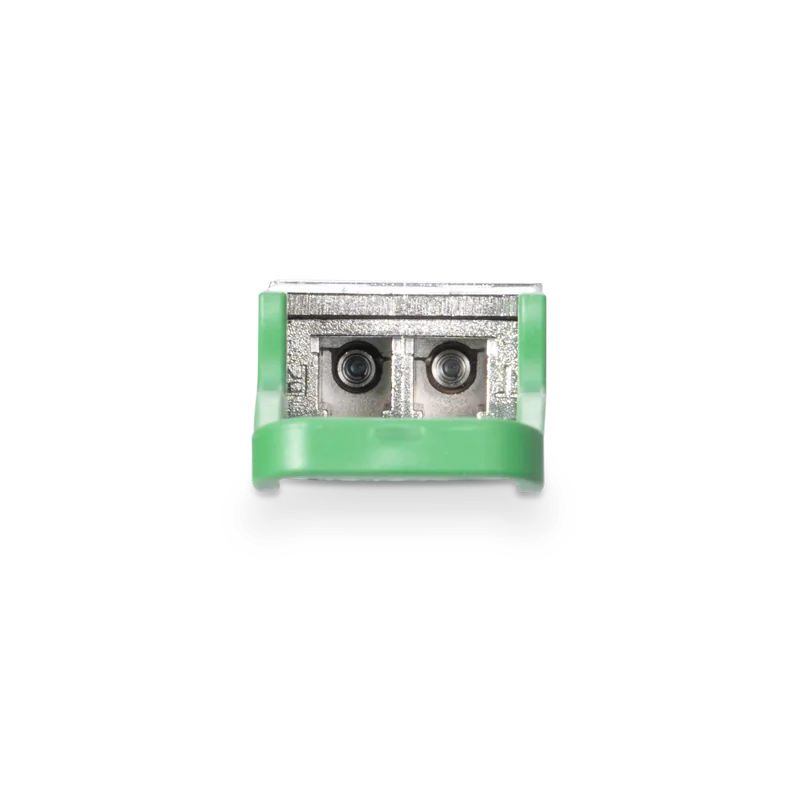

NADDOD Q56-200G-FR4H transceiver supports link lengths of up to 2km over Single Mode Fiber with Duplex-LC UPC connector in a QSFP56 form factor, using a nominal wavelength of 1310 nm.The module can convert 4-channel 53.125 Gbps electrical data to 4-channel optical signals, and multiplex them into a single channel for 212.5 Gbps optical transmission.This transceiver complies with the CMIS4.0, QSFP MSA, IEEE 802.3bs and operates according to the InfiniBand IBTA specification, and it is designed for use in 200Gb/s HDR InfiniBand applications.
NVIDIA/Mellanox MMS1W50-HM Compatible 200GBASE-FR4 QSFP56 PAM4 1310nm 2km DOM LC Duplex InfiniBand HDR Transceiver Module for SMF
$1,349.00
Sale price
$1,349.00
Regular price
$1,753.00
NADDOD Q56-200G-FR4H transceiver supports link lengths of up to 2km over Single Mode Fiber with Duplex-LC UPC connector in a QSFP56 form factor, using a nominal wavelength of 1310 nm.The module can convert 4-channel 53.125 Gbps electrical data to 4-channel optical signals, and multiplex them into a single channel for 212.5 Gbps optical transmission.This transceiver complies with the CMIS4.0, QSFP MSA, IEEE 802.3bs and operates according to the InfiniBand IBTA specification, and it is designed for use in 200Gb/s HDR InfiniBand applications.
