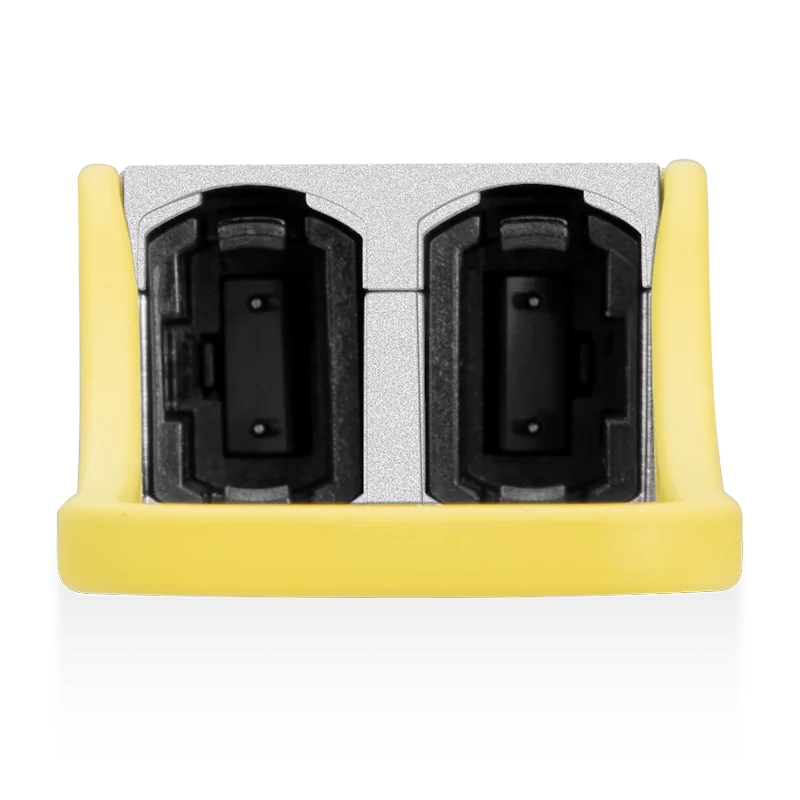

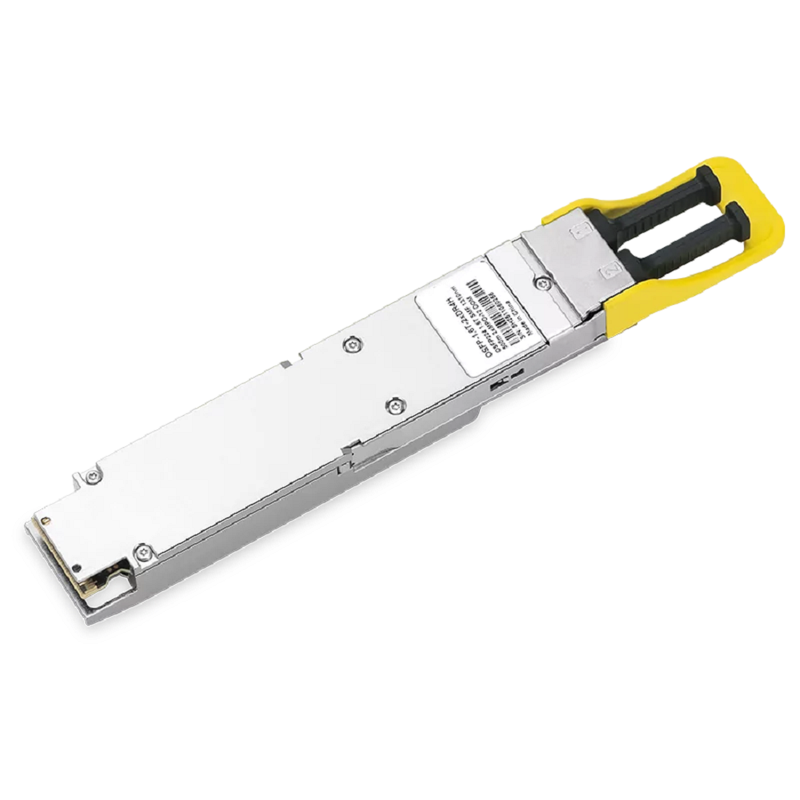

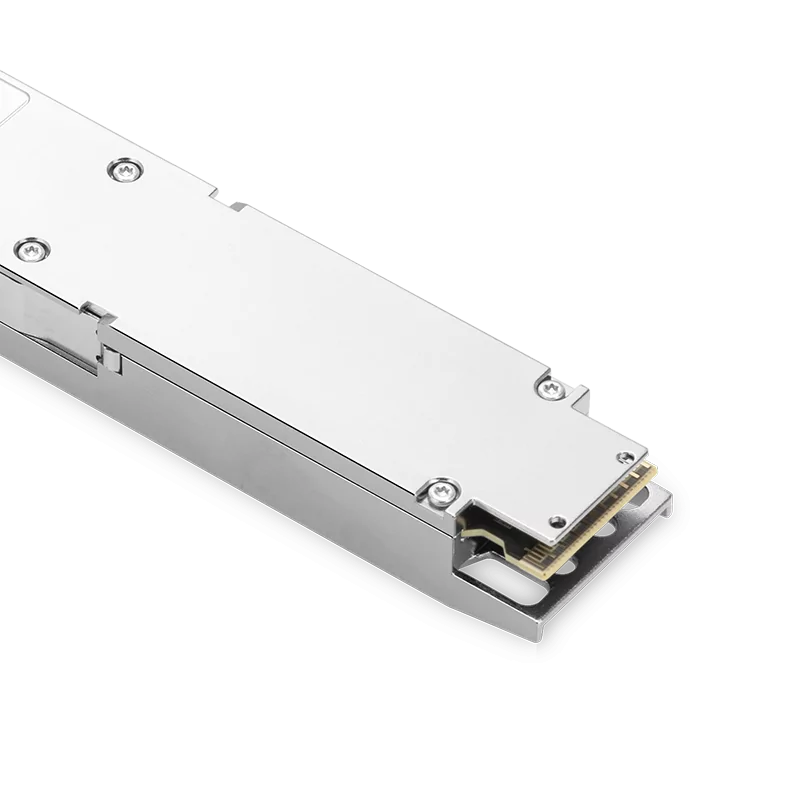

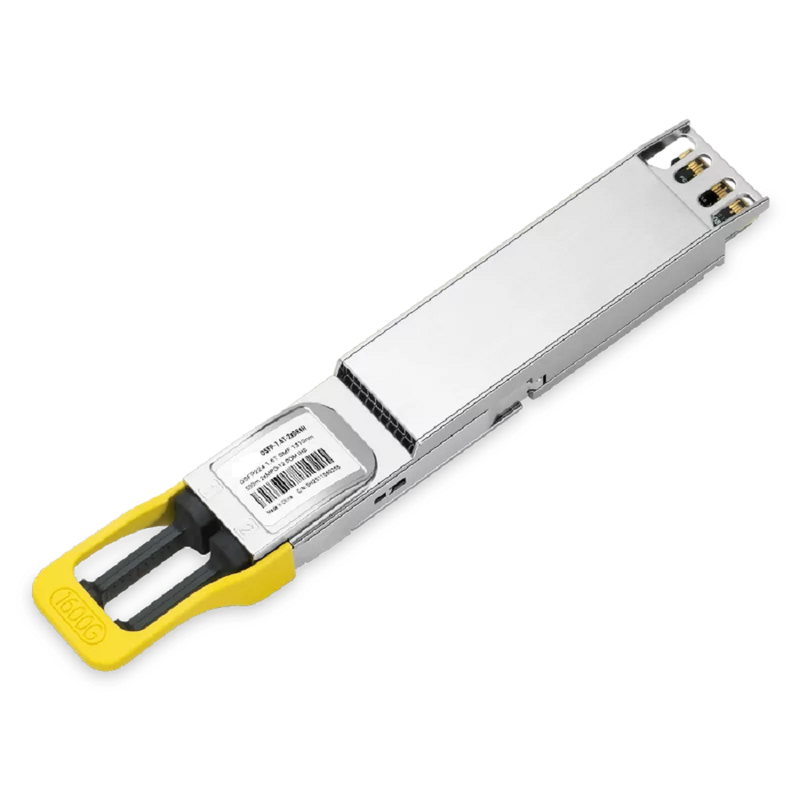

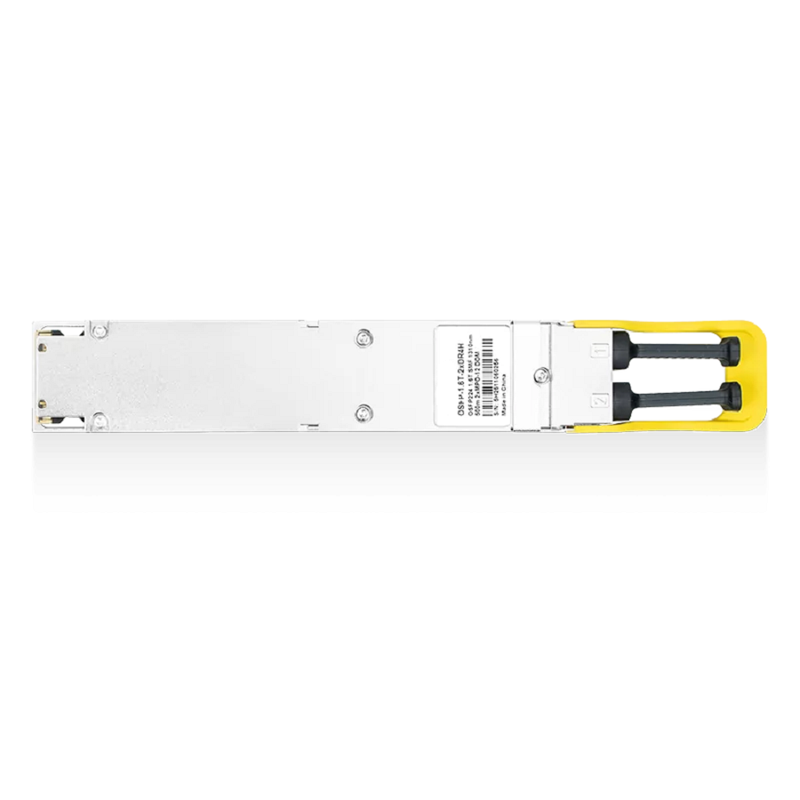

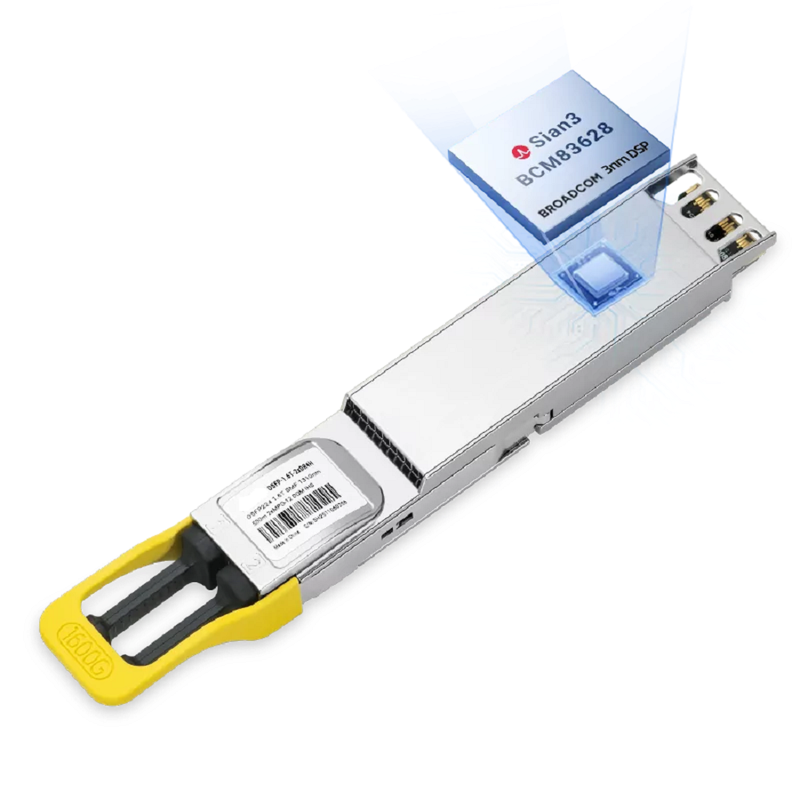

NVIDIA/Mellanox MMS4A00-XM (980-9IAH1-00XM00) Compatible 1.6T 2xDR4/DR8 OSFP224 IHS/Closed Finned Top PAM4 Broadcom 3nm DSP (Sian3 | BCM83628) 1310nm 500m SMF DOM Dual MPO-12/APC InfiniBand XDR Transceiver Module for Quantum-X800 Air-Cooled Switches
OSFP-1.6T-2xDR4H
$2,999.00
Sale price
$2,999.00
Regular price
$3,898.00
Skip to product information
Description
NADDOD OSFP-1.6T-2xDR4H optical transceiver is fully compatible with NVIDIA/Mellanox MMS4A00-XM (980-9IAH1-00XM00) and is purpose-built for next-generation InfiniBand XDR and high-speed Ethernet data center interconnect. This 1.6Tb/s dual-port OSFP224 transceiver adopts a parallel single-mode optical architecture based on either silicon photonics (SiPh) or EML, allowing either option for this transceiver. It supports 2x800G DR4 transmission over eight parallel single-mode fibers. Each 800G port operates with 4x200G-PAM4 lanes, delivering reliable high-speed data transmission with a maximum reach of up to 500 meters, ideal for short-reach intra–data center deployments. The 1.6T OSFP 2xDR4 transceiver integrates two independent 4-lane optical engines, each terminated with an MPO-12/APC connector, providing a total of eight parallel optical lanes. This architecture is optimized for high port density, low latency, and power-efficient switching environments, where scalability and signal integrity are critical. Leveraging either advanced silicon photonics (SiPh) or EML technology, the 1.6T OSFP 2xDR4 XDR optical transceiver delivers high integration density, improved power efficiency, and enhanced front-panel scalability. Powered by the Broadcom 3nm Sian3 DSP (BCM83628), the transceiver features advanced PAM4 signal conditioning and link robustness with ultra-low bit error rates (BER), enabling stable, low-latency 800G and 1.6T optical interconnects. The NADDOD OSFP-1.6T-2xDR4H is specifically designed for connectivity between NVIDIA Quantum-X800 air-cooled switches, forming the optical foundation of InfiniBand XDR AI and HPC data center fabrics.
NVIDIA/Mellanox MMS4A00-XM (980-9IAH1-00XM00) Compatible 1.6T 2xDR4/DR8 OSFP224 IHS/Closed Finned Top PAM4 Broadcom 3nm DSP (Sian3 | BCM83628) 1310nm 500m SMF DOM Dual MPO-12/APC InfiniBand XDR Transceiver Module for Quantum-X800 Air-Cooled Switches
$2,999.00
Sale price
$2,999.00
Regular price
$3,898.00
NADDOD OSFP-1.6T-2xDR4H optical transceiver is fully compatible with NVIDIA/Mellanox MMS4A00-XM (980-9IAH1-00XM00) and is purpose-built for next-generation InfiniBand XDR and high-speed Ethernet data center interconnect. This 1.6Tb/s dual-port OSFP224 transceiver adopts a parallel single-mode optical architecture based on either silicon photonics (SiPh) or EML, allowing either option for this transceiver. It supports 2x800G DR4 transmission over eight parallel single-mode fibers. Each 800G port operates with 4x200G-PAM4 lanes, delivering reliable high-speed data transmission with a maximum reach of up to 500 meters, ideal for short-reach intra–data center deployments. The 1.6T OSFP 2xDR4 transceiver integrates two independent 4-lane optical engines, each terminated with an MPO-12/APC connector, providing a total of eight parallel optical lanes. This architecture is optimized for high port density, low latency, and power-efficient switching environments, where scalability and signal integrity are critical. Leveraging either advanced silicon photonics (SiPh) or EML technology, the 1.6T OSFP 2xDR4 XDR optical transceiver delivers high integration density, improved power efficiency, and enhanced front-panel scalability. Powered by the Broadcom 3nm Sian3 DSP (BCM83628), the transceiver features advanced PAM4 signal conditioning and link robustness with ultra-low bit error rates (BER), enabling stable, low-latency 800G and 1.6T optical interconnects. The NADDOD OSFP-1.6T-2xDR4H is specifically designed for connectivity between NVIDIA Quantum-X800 air-cooled switches, forming the optical foundation of InfiniBand XDR AI and HPC data center fabrics.
