NVIDIA/Mellanox MMS4C11-XM800 (980-9IAY1-00XM00) Compatible 800G OSFP224 DR4 Broadcom 3nm DSP (Sian3 | BCM83628) 1310nm 500m RHS/Flat Top PAM4 DDM MPO/MTP-12 APC SMF Optical Transceiver Module
OSFP-800G-DR4
$2,069.00
Sale price
$2,069.00
Regular price
$2,689.00
Skip to product information
Description

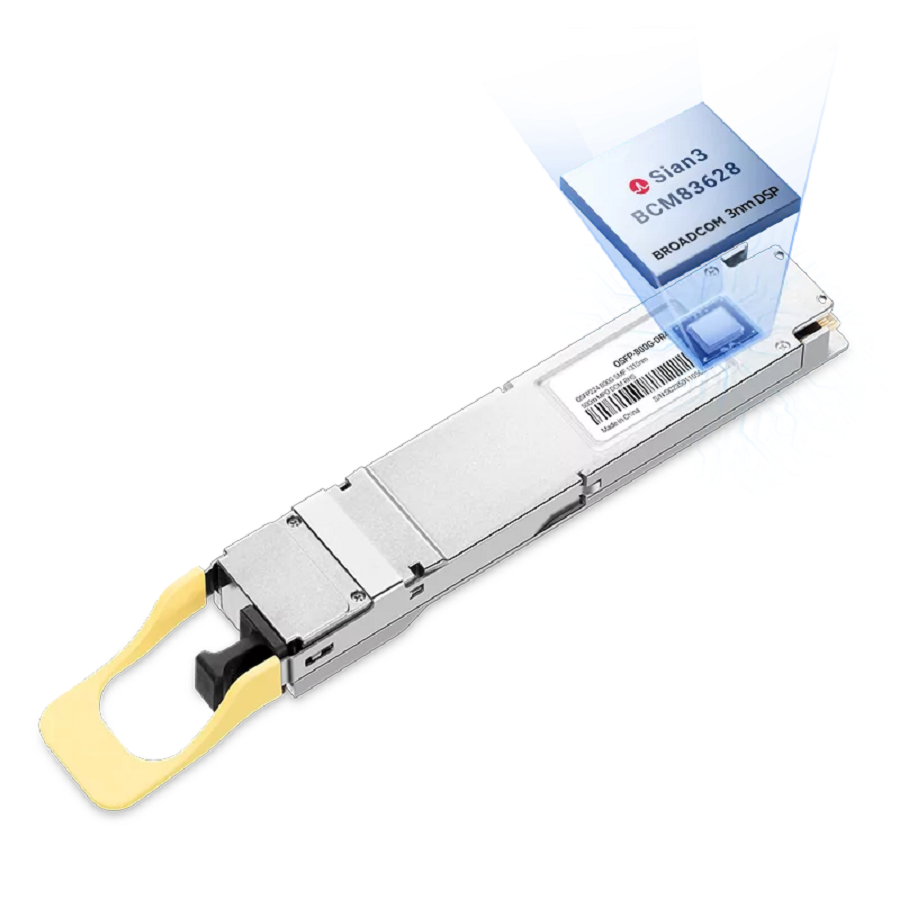

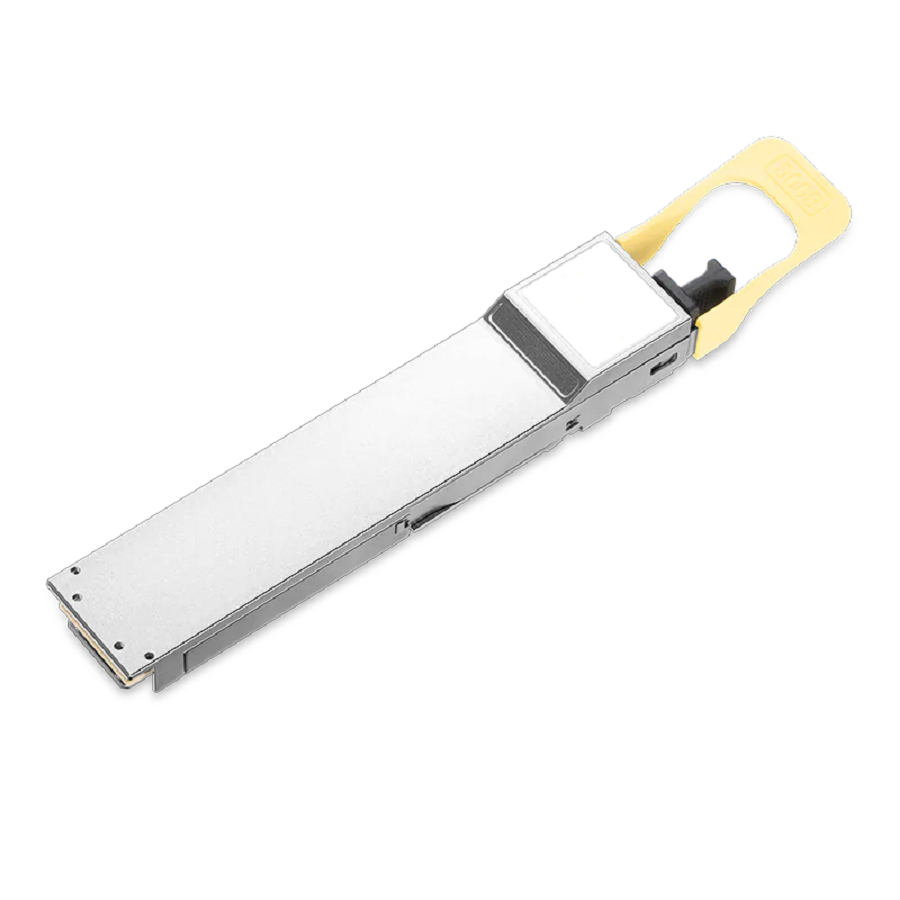

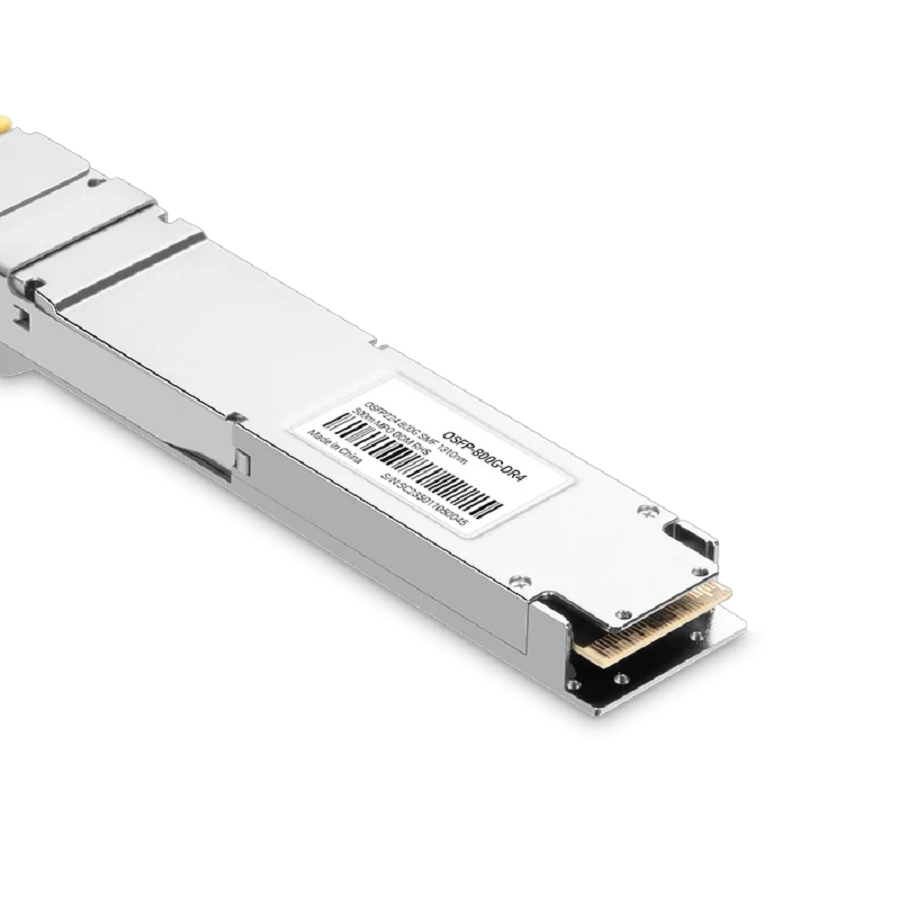

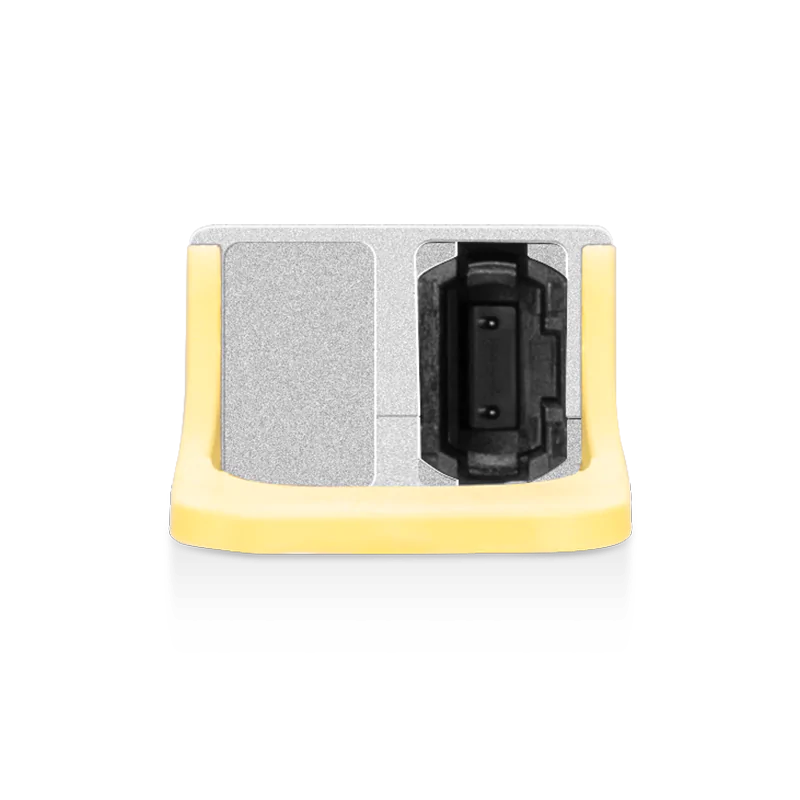

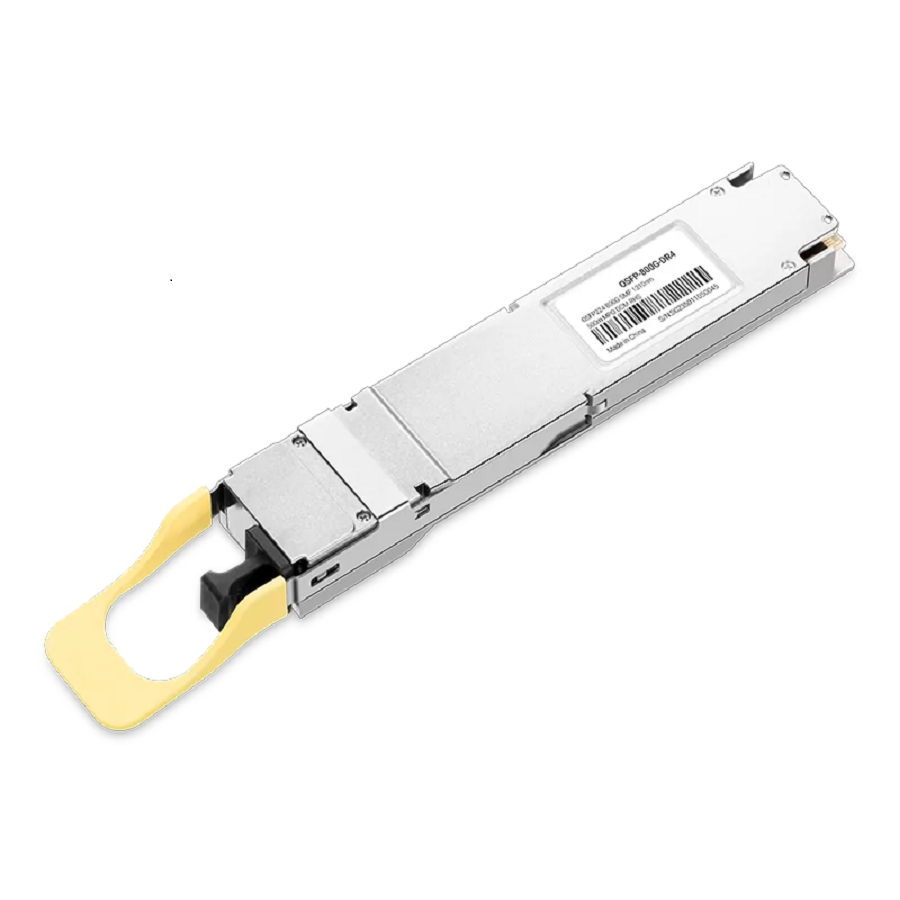

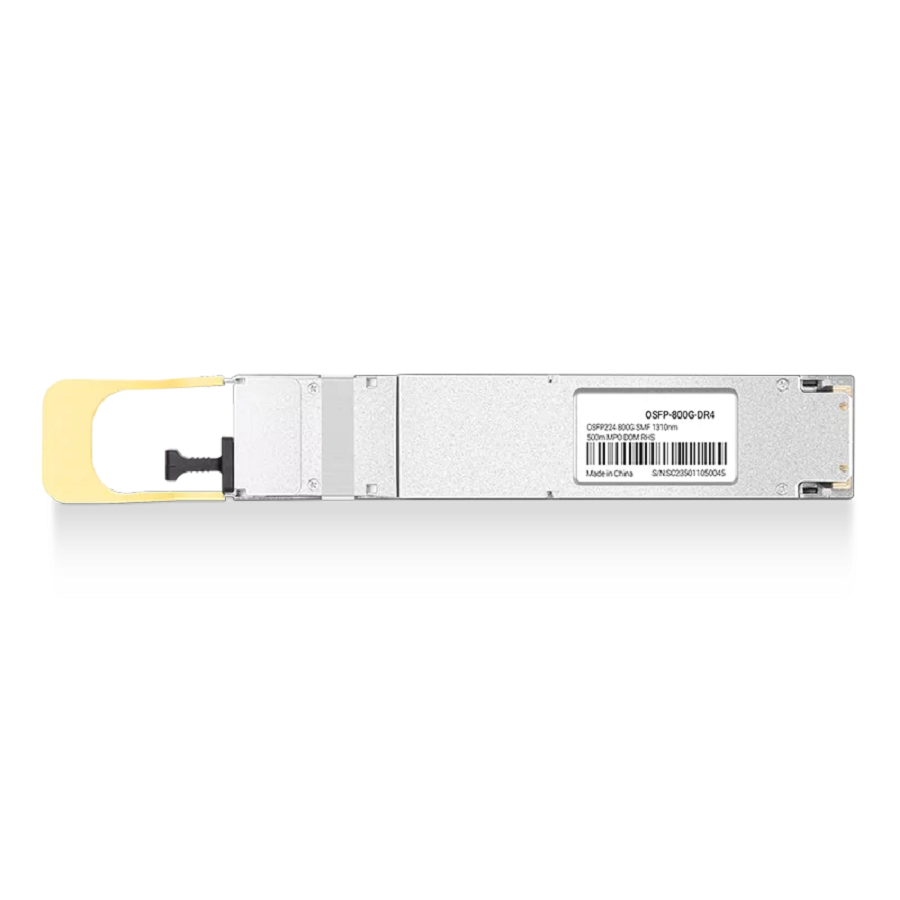

NADDOD OSFP-800G-DR4 adopts an OSFP Flat Top form factor, with 4×200G PAM4 on the electrical side and 4×200G PAM4 on the optical side. It operates at a 1310nm single-mode wavelength and achieves parallel optical transmission via a single-port MPO/MTP-12 APC interface, supporting single-mode fiber links up to 500 m in length. This module is primarily used for high-speed interconnection between TH6 series switches and ConnectX-9 (CX9) OSFP 800G network interface cards, suitable for large-scale AI training clusters, high-performance computing (HPC), and next-generation computing network architectures.
NVIDIA/Mellanox MMS4C11-XM800 (980-9IAY1-00XM00) Compatible 800G OSFP224 DR4 Broadcom 3nm DSP (Sian3 | BCM83628) 1310nm 500m RHS/Flat Top PAM4 DDM MPO/MTP-12 APC SMF Optical Transceiver Module
$2,069.00
Sale price
$2,069.00
Regular price
$2,689.00
NADDOD OSFP-800G-DR4 adopts an OSFP Flat Top form factor, with 4×200G PAM4 on the electrical side and 4×200G PAM4 on the optical side. It operates at a 1310nm single-mode wavelength and achieves parallel optical transmission via a single-port MPO/MTP-12 APC interface, supporting single-mode fiber links up to 500 m in length. This module is primarily used for high-speed interconnection between TH6 series switches and ConnectX-9 (CX9) OSFP 800G network interface cards, suitable for large-scale AI training clusters, high-performance computing (HPC), and next-generation computing network architectures.
