NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS

NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

OSFP-800G-2DR4F
$1,499.00
$1,499.00 $1,948.00
Skip to product information
NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
  • NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC SFPS
NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

$1,499.00
$1,499.00 $1,948.00
ModelOSFP-800G-2DR4F
Description

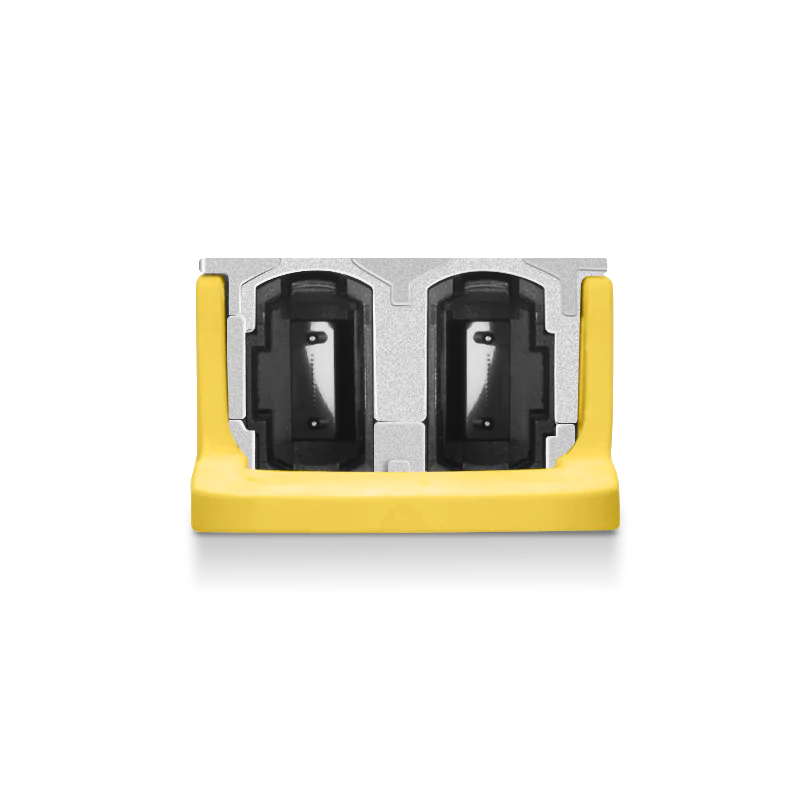

NADDOD NVIDIA/Mellanox MMS4X00-NM- FLT compatible OSFP-800G-2xDR4F optical transceiver is designed for 800Gb/s Ethernet interconnects, using a twin-port OSFP architecture to support 2×400Gb/s DR4/DR8 single-mode transmission over an 8-channel parallel optical interface. The module operates via two MPO-12/APC connectors, with each connector carrying four optical lanes, and applies 100G-PAM4 modulation to enable data center–reach links of up to 500 meters over single-mode fiber. The module is compatible with NVIDIA ConnectX-8 C8180 SuperNIC, delivering stable, high-speed optical connectivity. By adopting a parallel DR4/DR8 design optimized for short-to-medium reach connectivity, the OSFP-800G-2xDR4F enables high port density and efficient bandwidth scaling in 800G switching systems. Finned-top OSFP shells are supported to meet the additional cooling requirements of 800G OSFP switches, while a flat-top variant is available for ConnectX-8 system links, providing flexibility across different deployment platforms.
