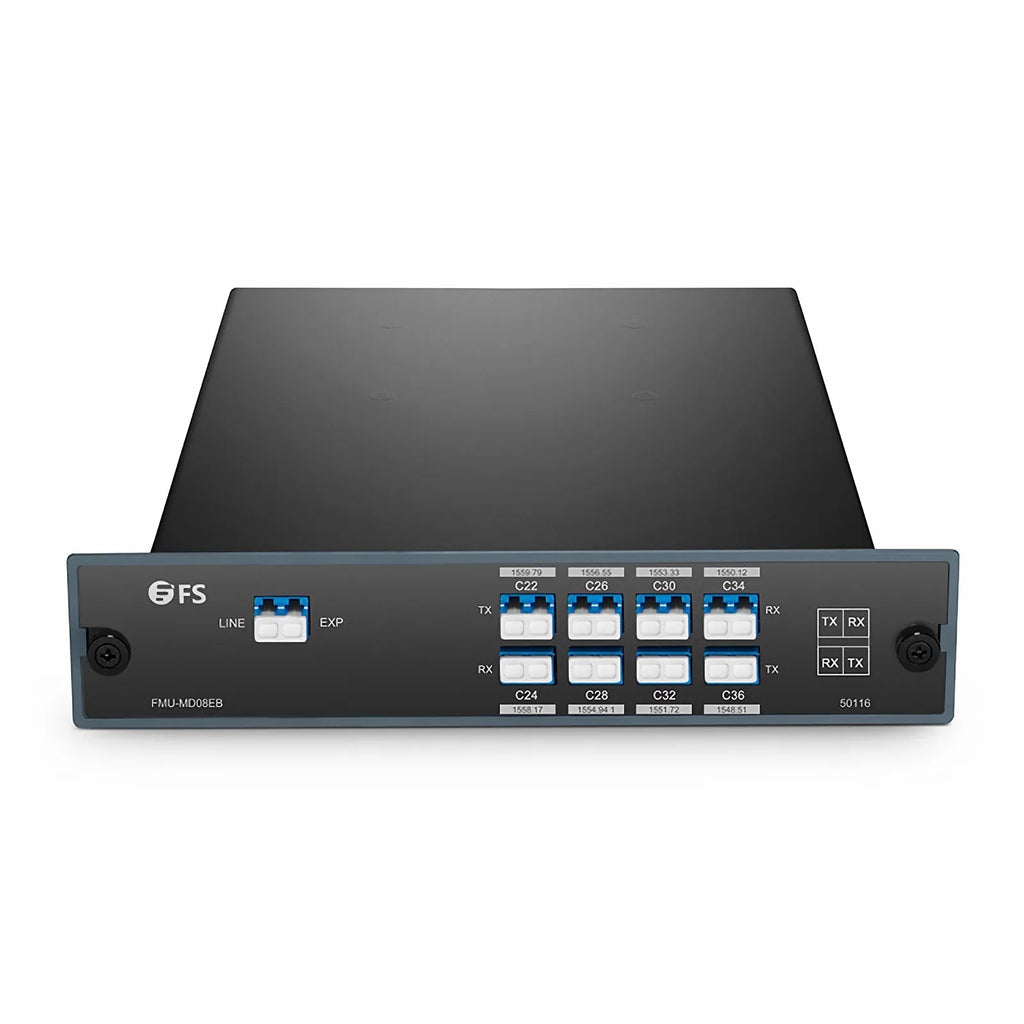

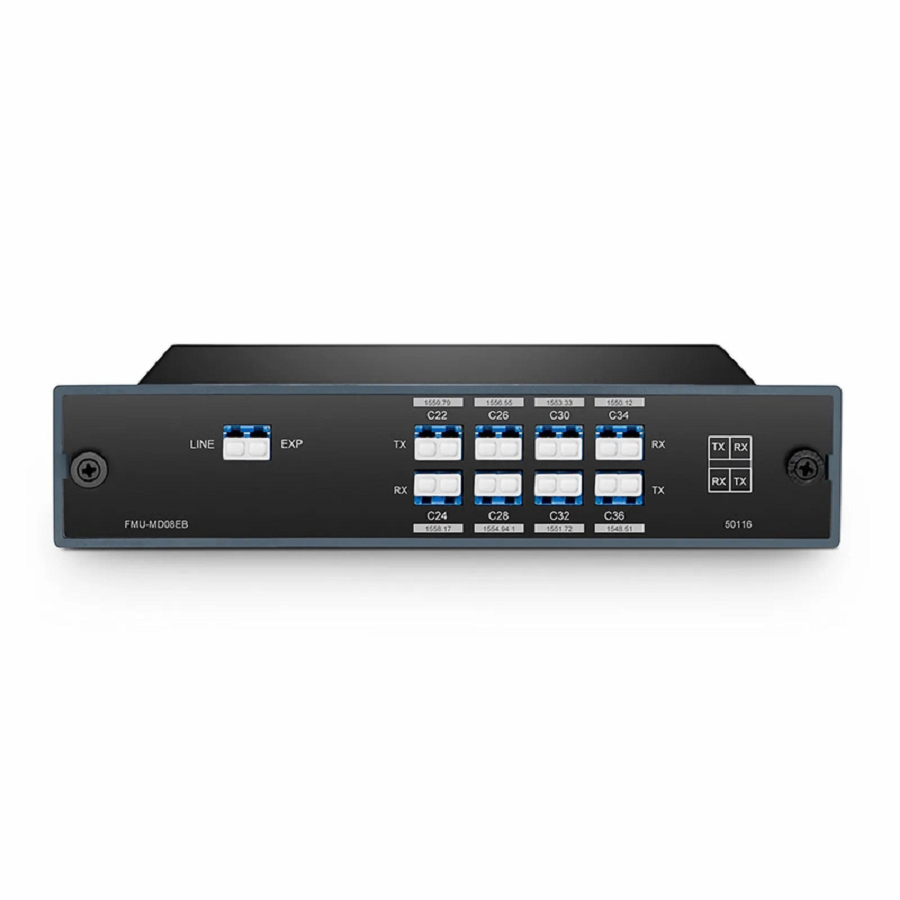

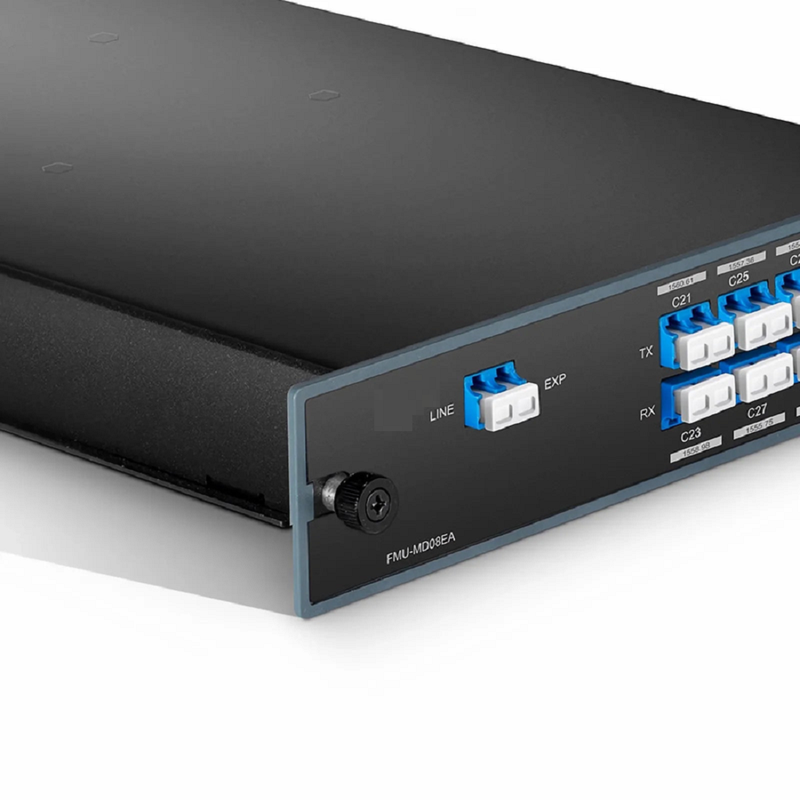

SFPS 8 Channels DWDM Mux Demux, 100GHz C22-C36, with Expansion Port, 4.2dB Typical IL, LC/UPC, Single Fiber, Side-B, FMU Plug-in Module

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

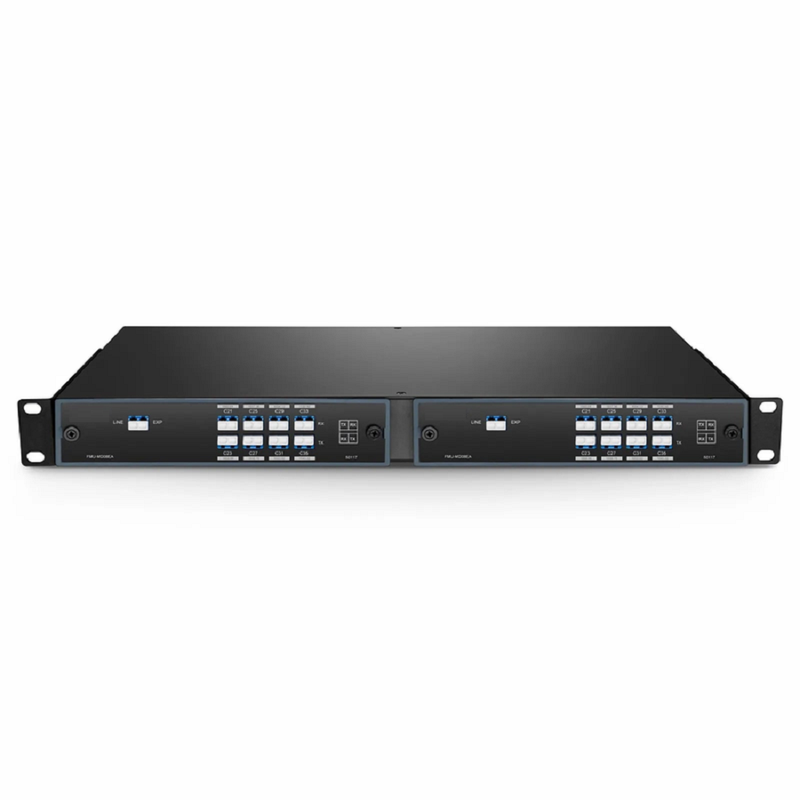

The 8CH Mux Demux, based on TFF (Thin Film Filter), is a passive DWDM device featuring high density, low loss, and long-haul transmission suitability. It features an expansion port can be used to add additional channels, providing a cost-effective and easily expandable solution. In addition, this unit can act as either a multiplexer or de-multiplexer (Mux/Demux). It combines 8-channel of DWDM wavelengths into a composite signal and separates the combined DWDM signal into 8-channel individual wavelengths over a single-mode optical fiber. In accordance with the ITU-T G.694.1, it maximizes the capacity of the C-band range. Designed for maximum configuration flexibility, the DWDM Mux Demux can plug directly into the FMU chassis, each module occupying one slot. Moreover, because single fiber Mux/Demux is always used in pairs, this device needs to be used in conjunction with the FMU-MD08EA.
