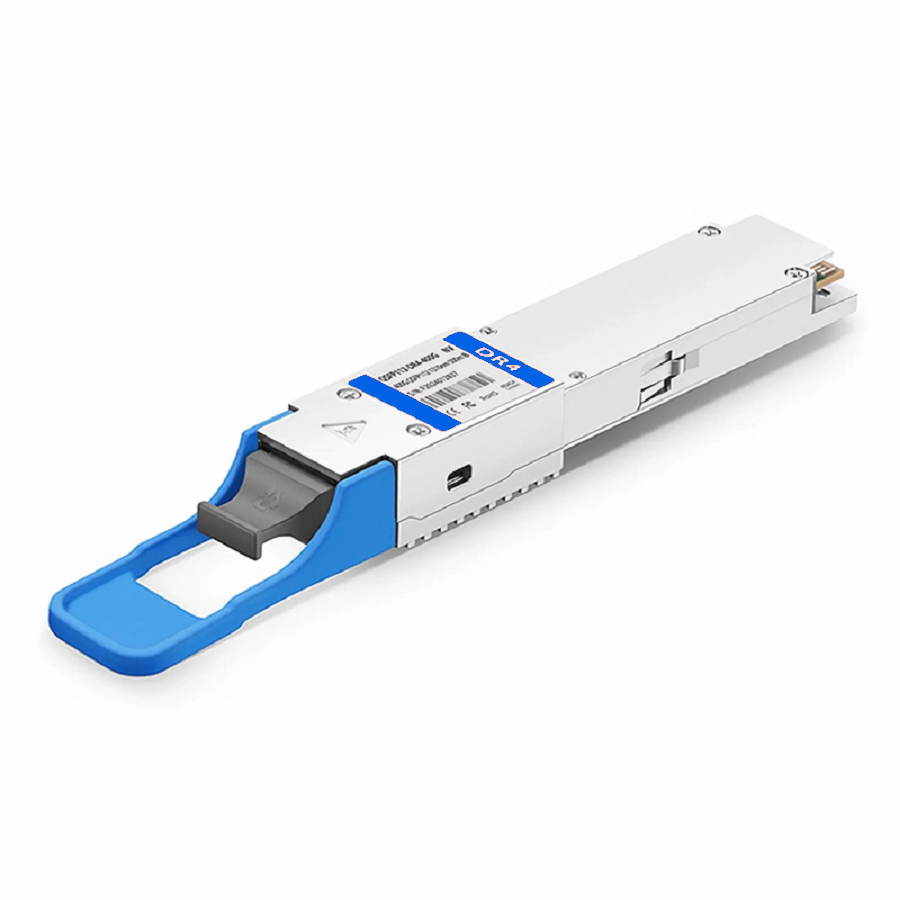

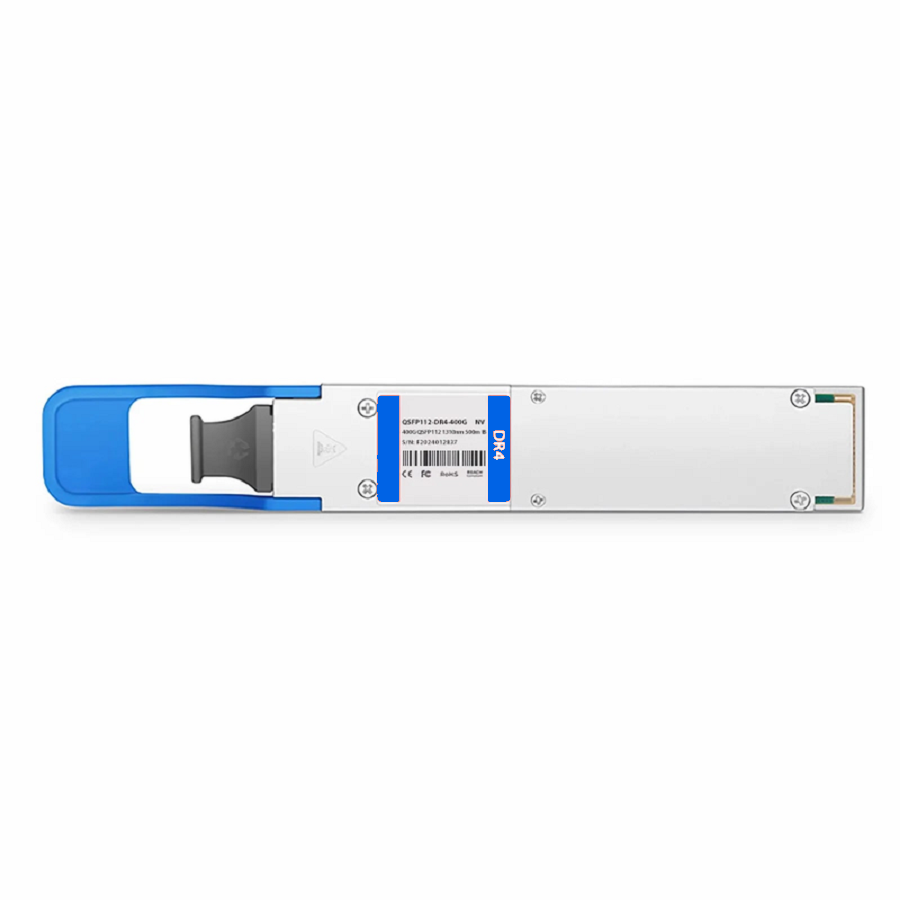

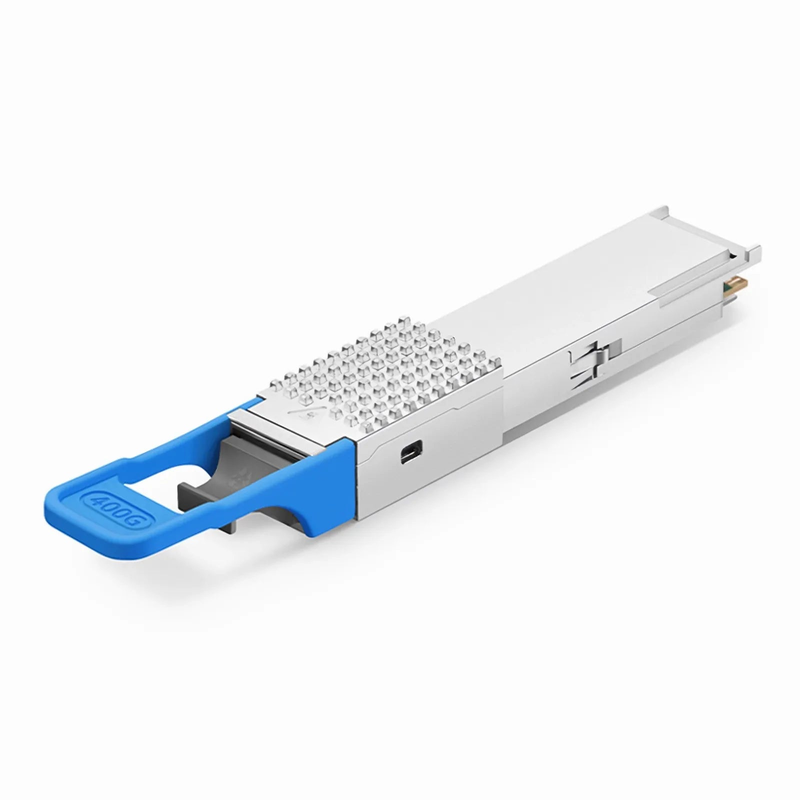

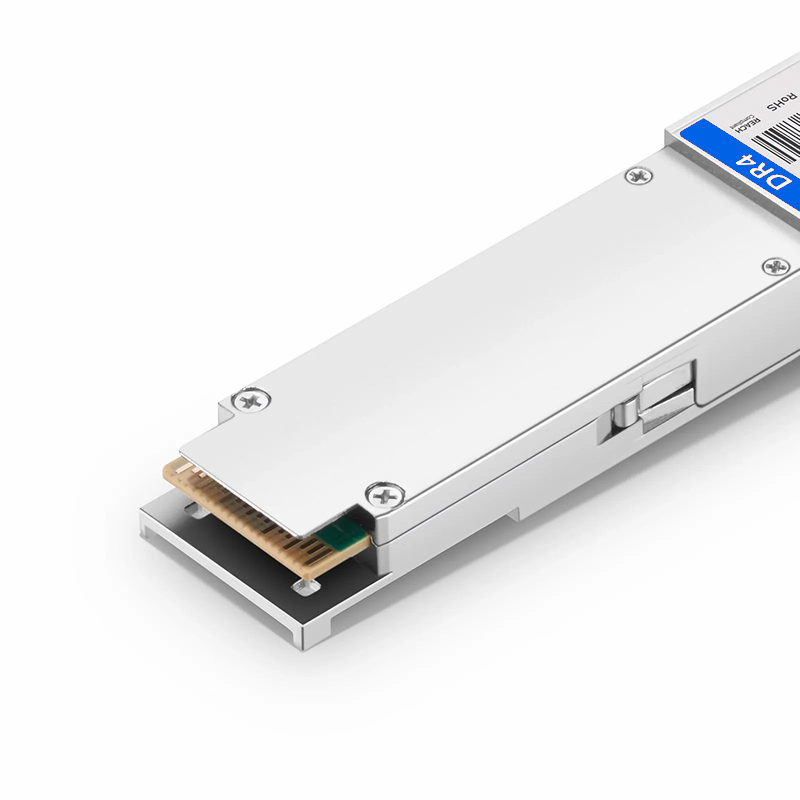

SFPS NVIDIA/Mellanox MMS1X00-NS400 Compatible 400GBASE-DR4 QSFP112 4 x 100G PAM4 1310nm 500m DOM MPO-12/APC SMF InfiniBand NDR Optical Transceiver Module for ConnectX-7 HCA

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

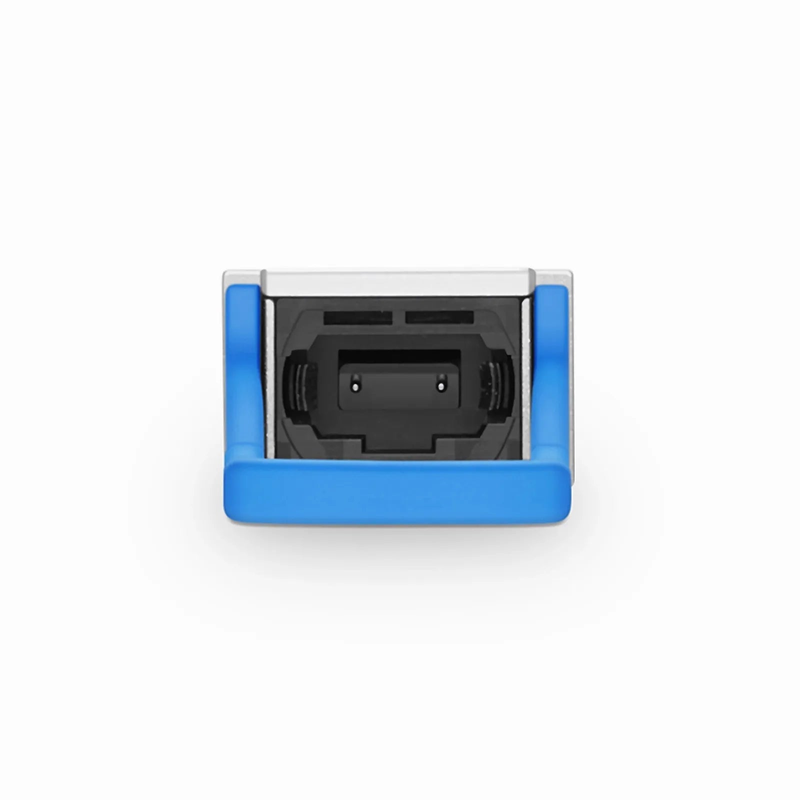

The NVIDIA/Mellanox MMS1X00-NS400 Compatible QSFP112 InfiniBand NDR Optical Transceiver is an InfiniBand 400Gb/s Single-port QSFP112, DR4 single-mode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Reach 4-channel (DR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters using OS2 single mode fibers. Used in ConnectX-7/QSFP112 adapters linked to Twin-port transceivers in 2x400G IB switches. When connected to a 1:2 splitter fiber cable, there are only 2 channels on the split end and only 2-channels in the 400G transceiver will be activated, automatically producing 200G speeds and reducing power. It is an ideal solution for supercomputing and is suitable for InfiniBand NDR end-to-end systems, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnection.

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
