SFPS NVIDIA/Mellanox MMS4X50-NM Compatible 800GBASE 2 x FR4 OSFP Closed Finned Top 8 x 100G PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 Switches

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

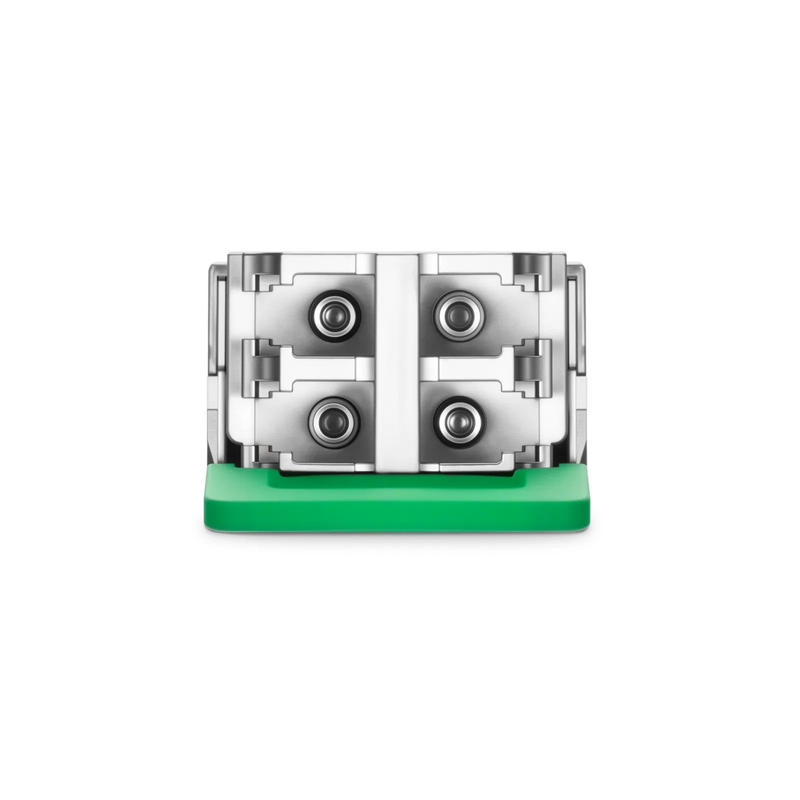

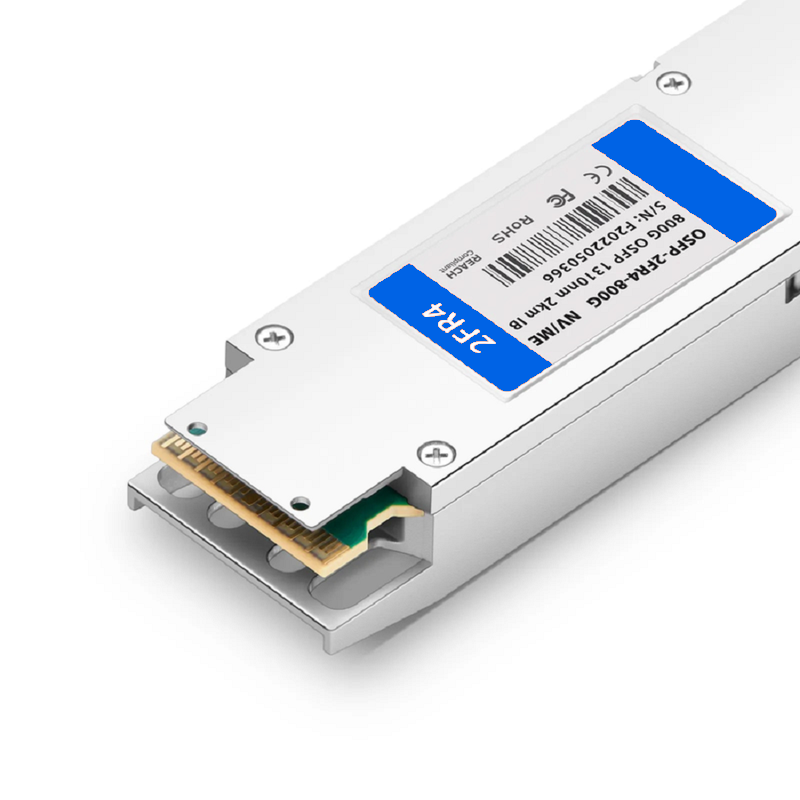

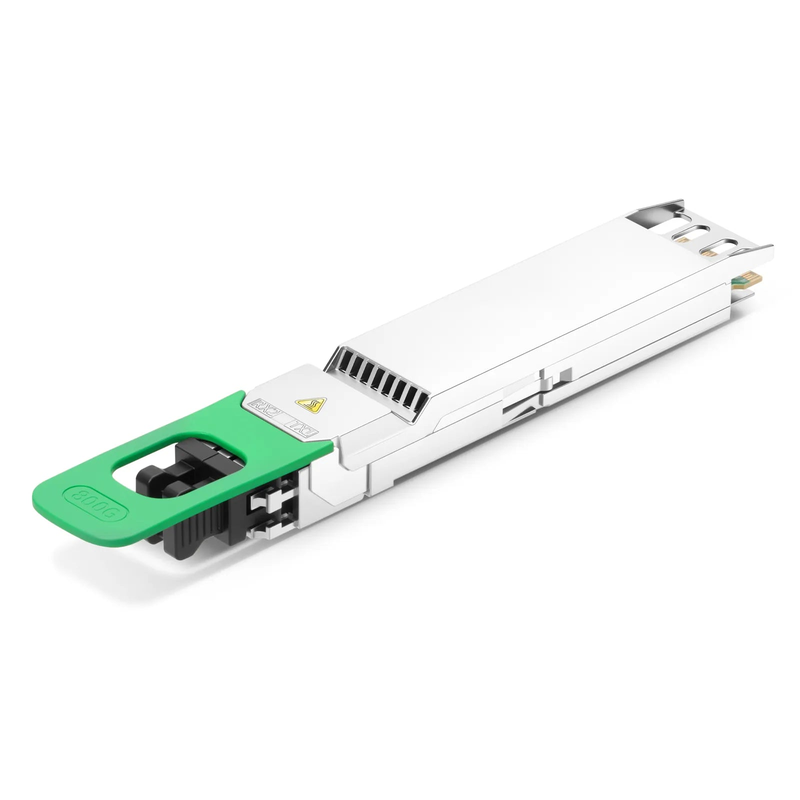

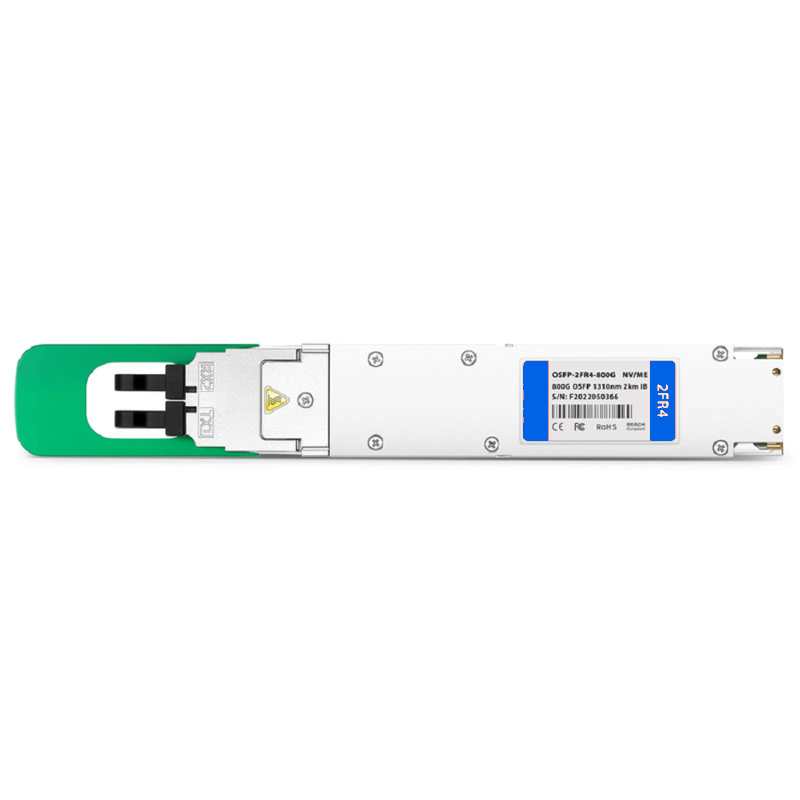

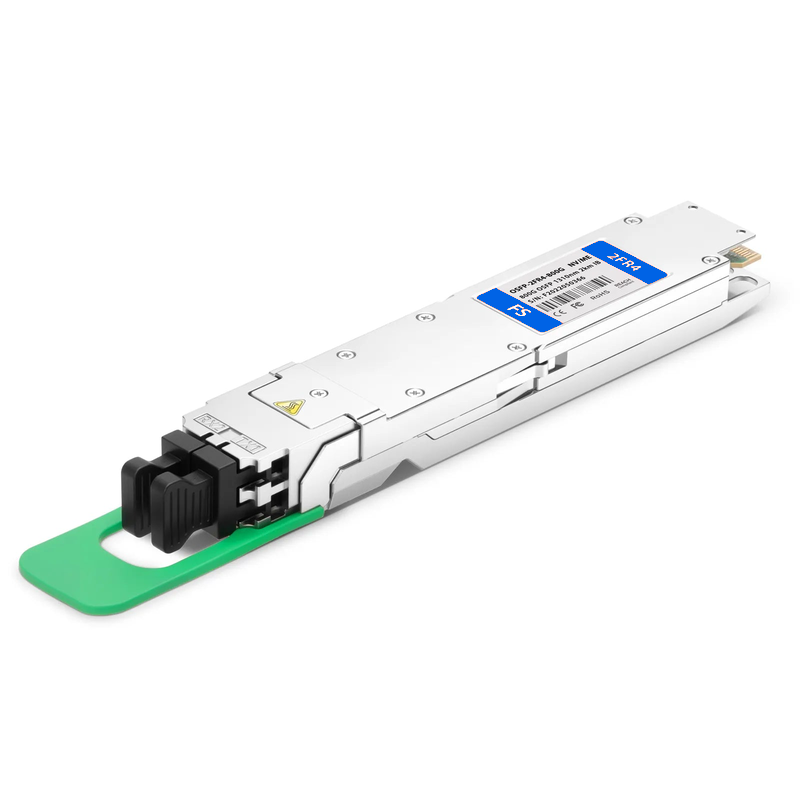

The NVIDIA/Mellanox InfiniBand MMS4X50-NM Compatible OSFP Optical Transceiver is an 800Gb/s 2x 400Gb/s Twin-port OSFP, 2x FR4 single mode, Multiplexed, 8-channel transceiver using two, 2-fiber, LC Duplex optical connectors each carrying 4-channels of 100G-PAM4. The dual Far Reach 8-channel (2x FR4) design uses 100G-PAM4 electrical and optical modulation based on the CWDM4 serial, multiplexed 1310nm wavelength grid. It is qualified for use in InfiniBand NDR end-to-end systems. The twin-port OSFP closed finned top transceiver is used in Quantum-2 air-cooled switches. Featured with low latency, low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to ConnectX smart network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers. Note: This "Closed Finned Top" refers to a closed top design, which uses a finned-top but with a lid on top of the fins creating a closed channel for additional cooling. It is engineered to support both airflow cooling and liquid-cooled environments, offering enhanced mechanical protection and thermal compatibility in high-density systems.

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
