SFPS 480W 48VDC Slim DIN Rail Economical Industrial Power Supply with PFC Function

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

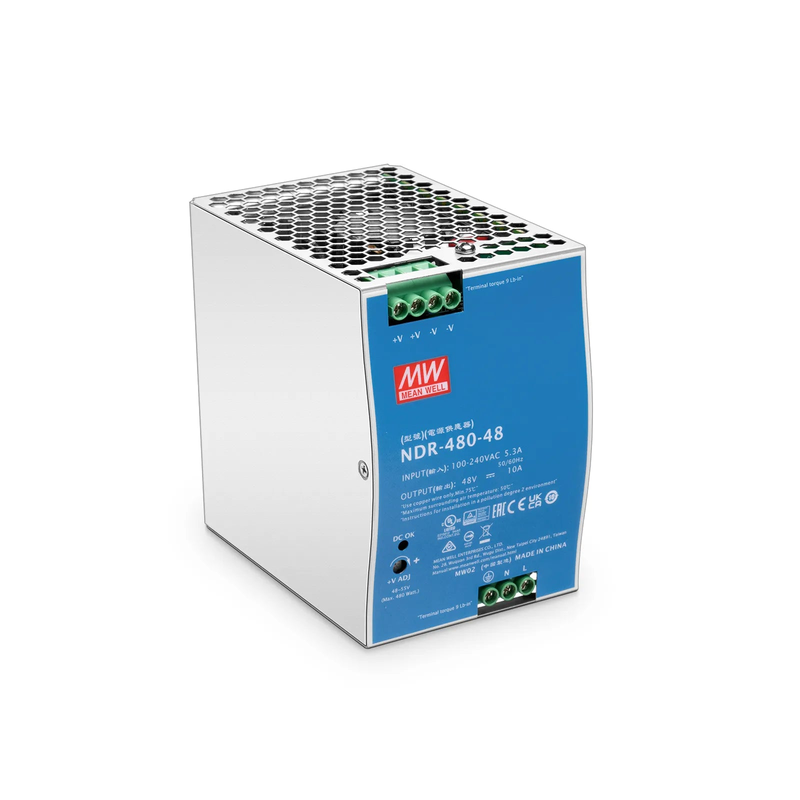

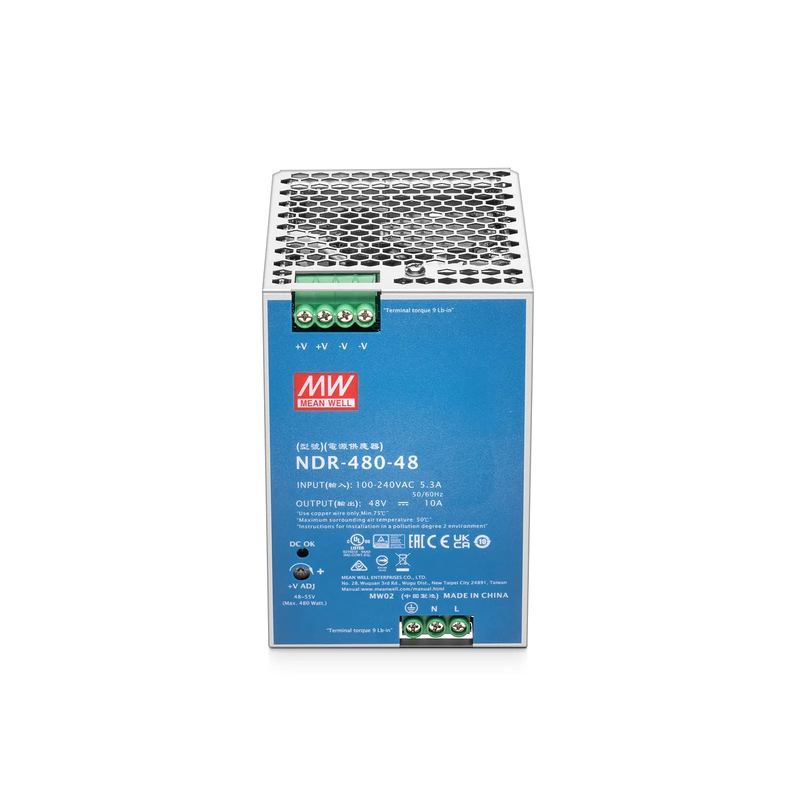

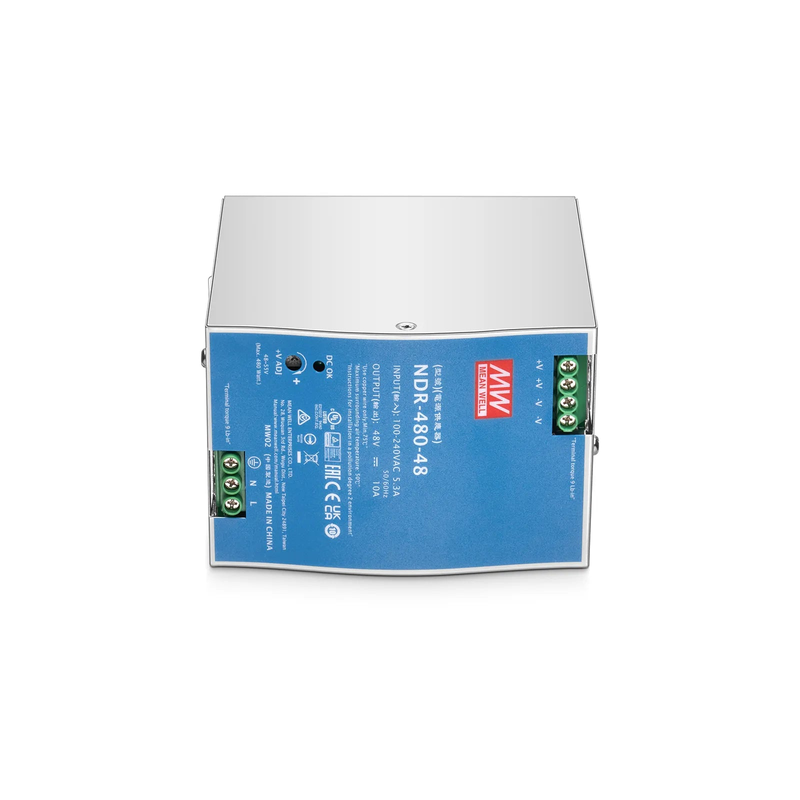

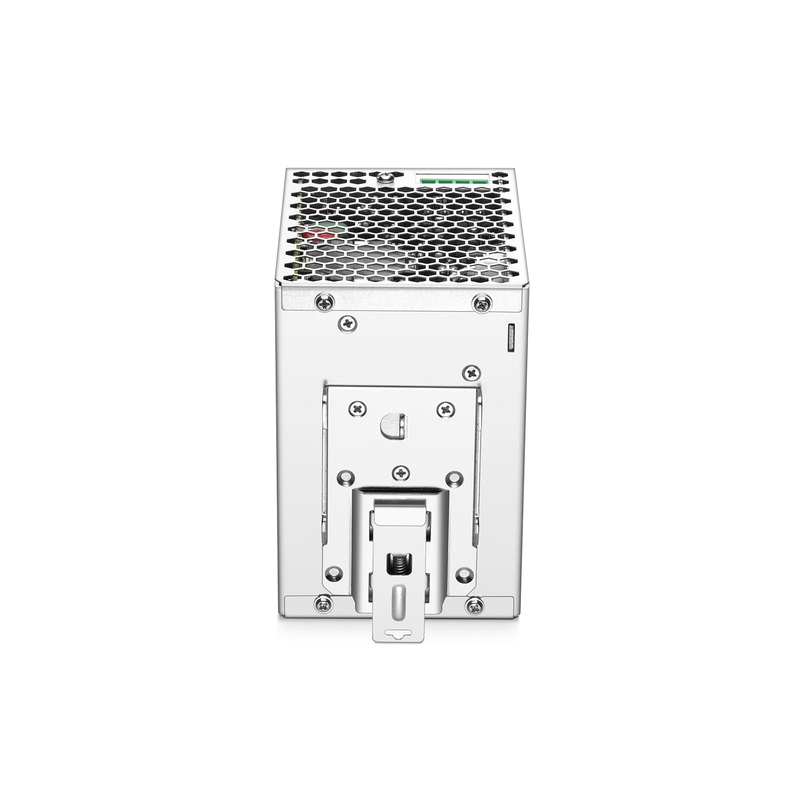

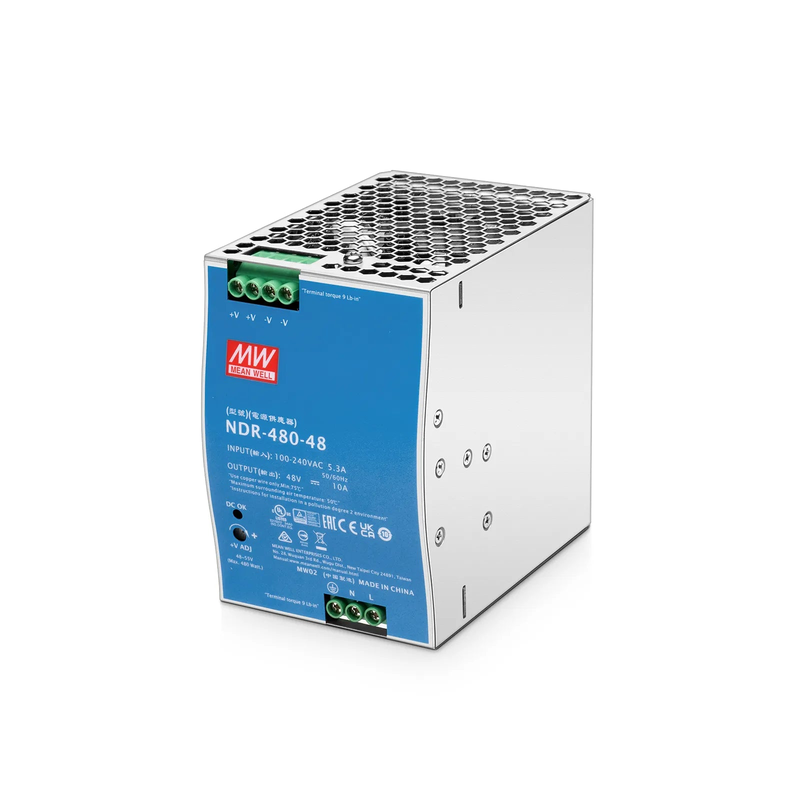

The NDR-480-48 slim power supply features a compact size, making it ideal for TS-35/7.5 or 15 DIN rail installation. The metal casing design enhances heat dissipation, durability, and electromagnetic compatibility, allowing it to operate reliably in harsh environments. Cooling by natural air convection, NDR-480-48 can operate in ambient temperatures ranging from -20 to 70. Its highly efficient and stable output power can support 130% of peak load. NDR-480-48 supplies up to 480 W (48V, 10A) of power to industrial PoE equipment such as switches, IP cameras, AP, and media converters. It can be widely used in harsh environments such as smart cities (Surveillance & Security), industrial Ethernet, and transportation. Note: The NDR-480-48 AC-DC power supply module is compatible with IES3110-8TF-P, IES3220-8T4F-U, IES3110-8TFM-P, TSN3220-10S-U, IES5120-28TS-P, IES4100W-8U2FD, IES5200W-8U2F2SD, IES5200W-8U2F4SD.

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
