SFPS NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

SFPS NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

Model

Product SKU

SFPS-OSFP-800G-2DR4F-154280

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

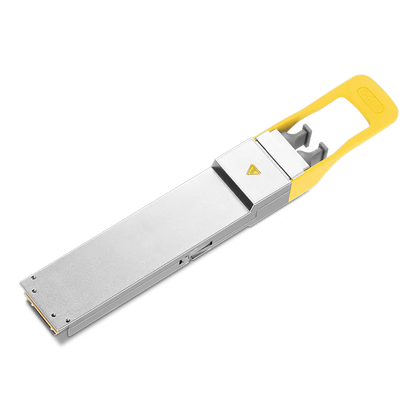

SFPS NVIDIA/Mellanox MMS4X00-NM- FLT compatible OSFP-800G-2xDR4F optical transceiver is designed for 800Gb/s Ethernet interconnects, using a twin-port OSFP architecture to support 2×400Gb/s DR4/DR8 single-mode transmission over an 8-channel parallel optical interface. The module operates via two MPO-12/APC connectors, with each connector carrying four optical lanes, and applies 100G-PAM4 modulation to enable data centerœreach links of up to 500 meters over single-mode fiber. The module is compatible with NVIDIA ConnectX-8 C8180 SuperNIC, delivering stable, high-speed optical connectivity. By adopting a parallel DR4/DR8 design optimized for short-to-medium reach connectivity, the OSFP-800G-2xDR4F enables high port density and efficient bandwidth scaling in 800G switching systems. Finned-top OSFP shells are supported to meet the additional cooling requirements of 800G OSFP switches, while a flat-top variant is available for ConnectX-8 system links, providing flexibility across different deployment platforms.

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.

View full details

PRODUCT REFERENCE

Know exactly what you’re ordering.

SFPS NVIDIA/Mellanox MMS4X00-NM- FLT Compatible 800G OSFP 2xDR4/DR8 1310nm 500m PAM4 DOM Two MPO-12/APC SMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

Use these details when discussing your requirements with SFPS.
Brand / vendor
SFPS
SKU / reference
SFPS-OSFP-800G-2DR4F-154280
Model choices
OSFP-800G-2DR4F
Ordering help
Contact Us ↗

PRODUCT & ORDERING HELP

Questions before you order?

Will this work with my installation?

Compatibility depends on the exact product and configuration. Share your equipment model, interfaces and application with SFPS before ordering.

How do I confirm availability and delivery?

Send your required configuration, quantity, destination and target date. Ask SFPS to confirm availability and lead time for your order.

What should I include in a quotation request?

Include the product reference, required options, quantity, delivery location and any technical requirements. The enquiry button prepares an email with this product’s name and link.

Lifetime warranty

Long-term confidence in your purchase, subject to the applicable product warranty terms.

100% tested

Pre-shipment testing to help you deploy with confidence.

GCC delivery

Ask about same-day delivery, subject to stock, order cut-off and destination.
