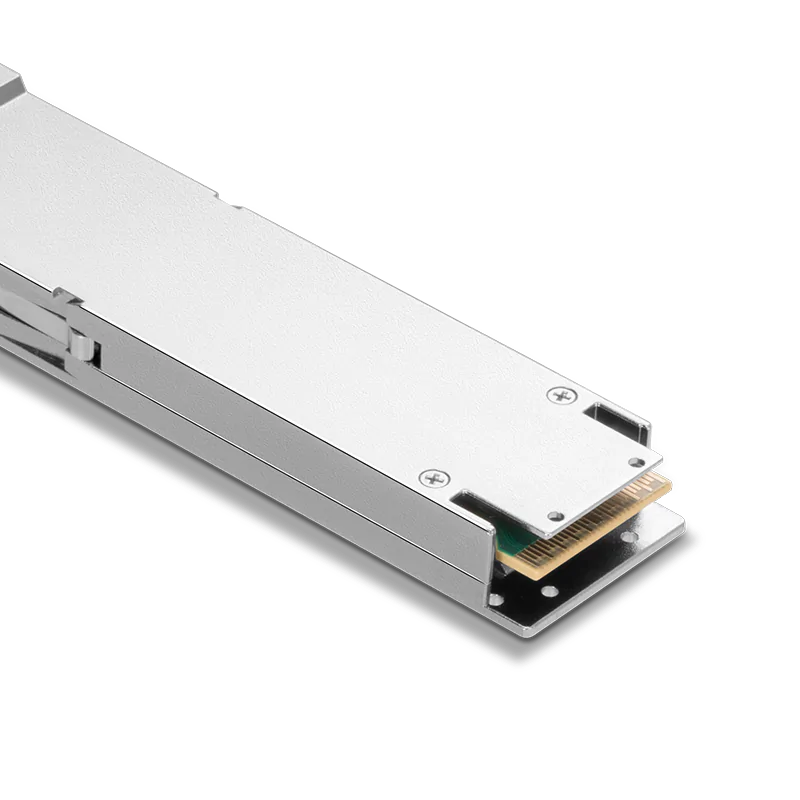

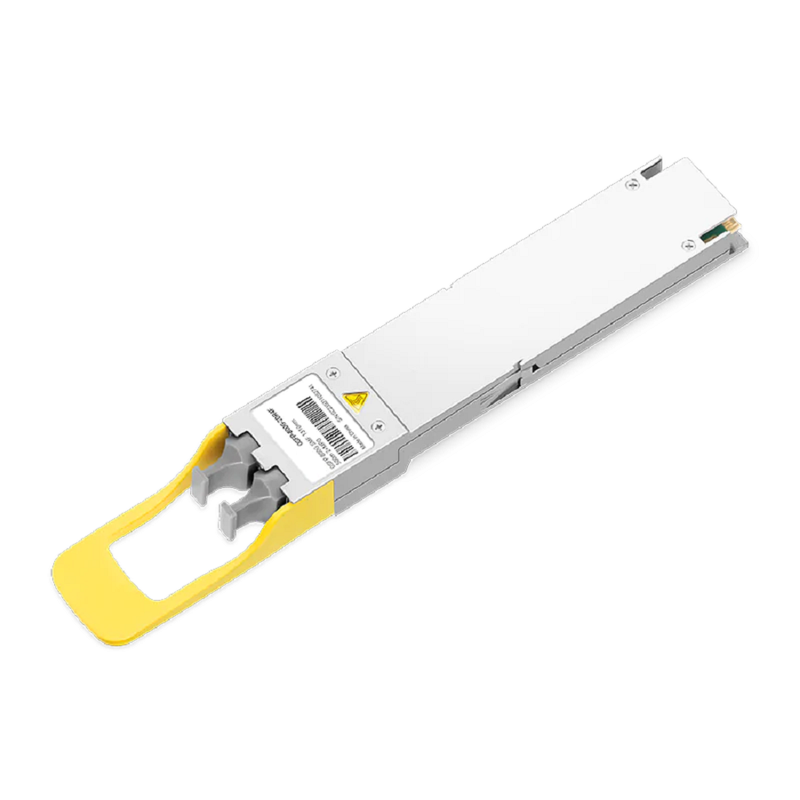

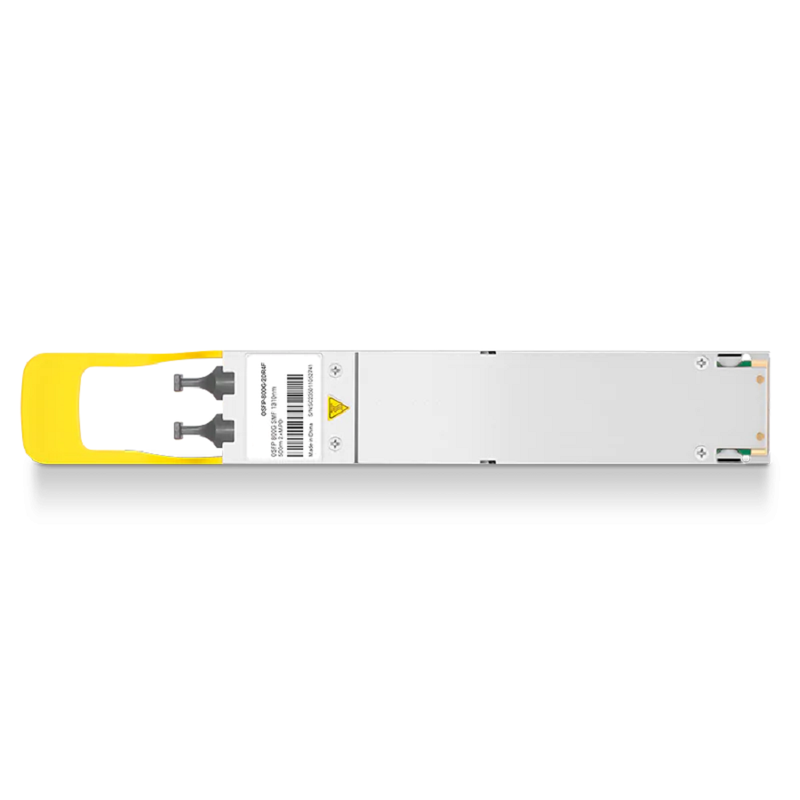

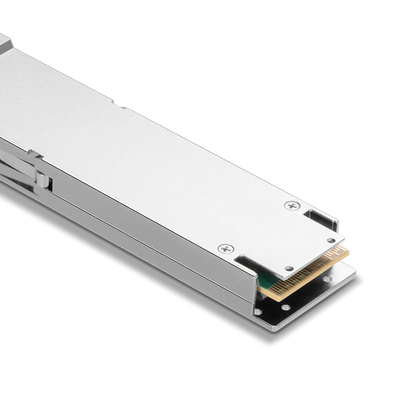

SFPS NVIDIA/Mellanox MMS4X00-NS-FLT Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 100m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Flat Top DGX H100)

Model OSFP-800G-2DR4FH

Product SKU

SKU:SFPS-OSFP-800G-2DR4FH-164964

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

SFPS OSFP-800G-2xDR4FH Optical Transceiver Module is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 100G-PAM4 modulation and has a maximum fiber reach of 100-meters using 8 single mode fibers. The Twin-port 2xDR4/DR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage. The OSFP-800G-2xDR4FH is used in liquid-cooled and DGX-H100 systems.

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.

View full details

PRODUCT REFERENCE

Know exactly what you’re ordering.

SFPS NVIDIA/Mellanox MMS4X00-NS-FLT Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 100m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Flat Top DGX H100)

Use these details when discussing your requirements with SFPS.

Brand / vendor: SFPS
SKU / reference: SFPS-OSFP-800G-2DR4FH-164964
Model choices: OSFP-800G-2DR4FH
