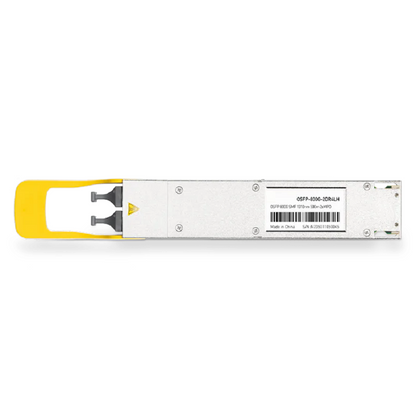

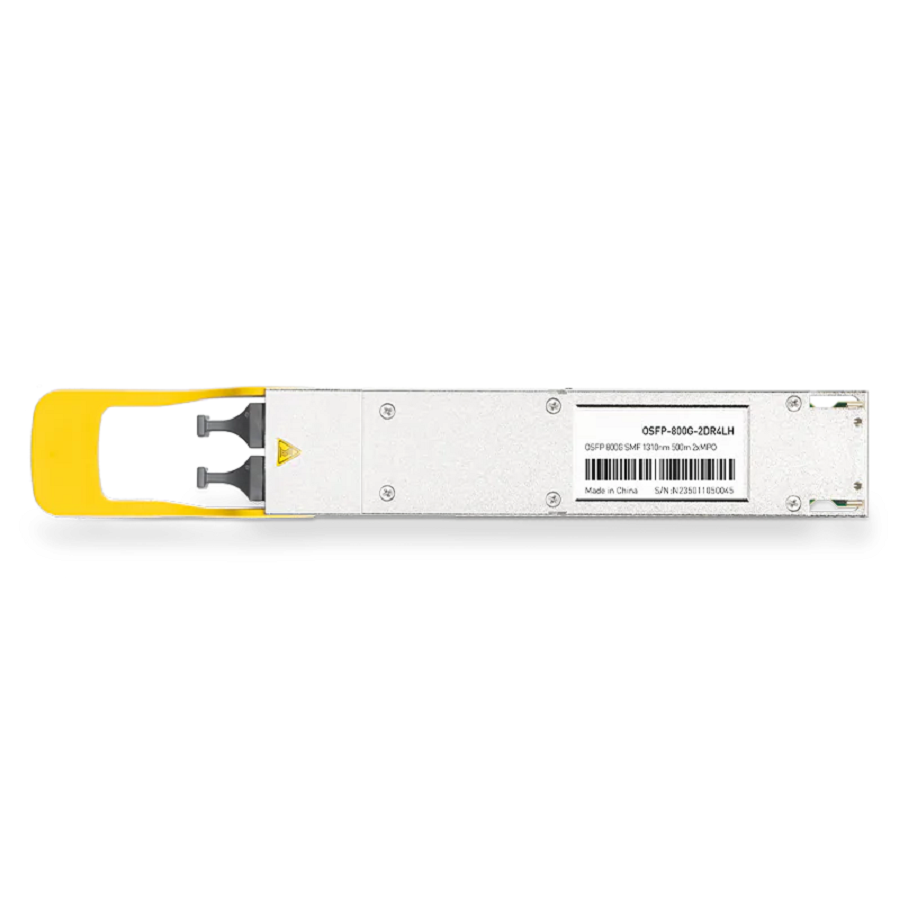

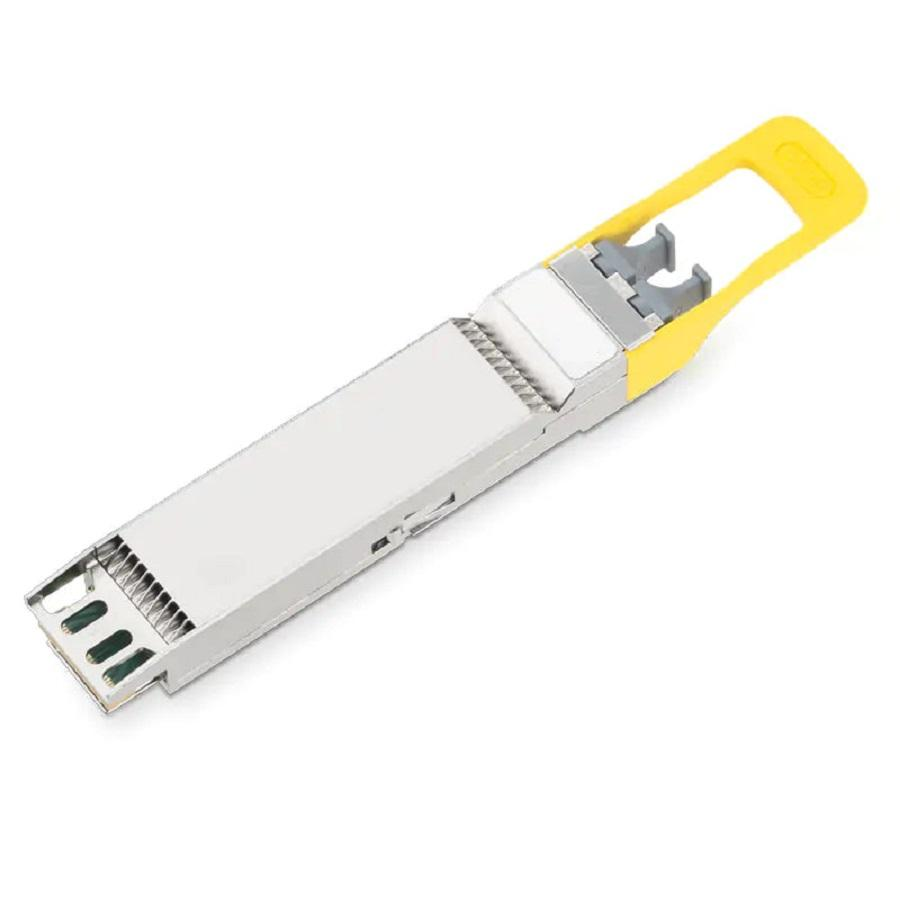

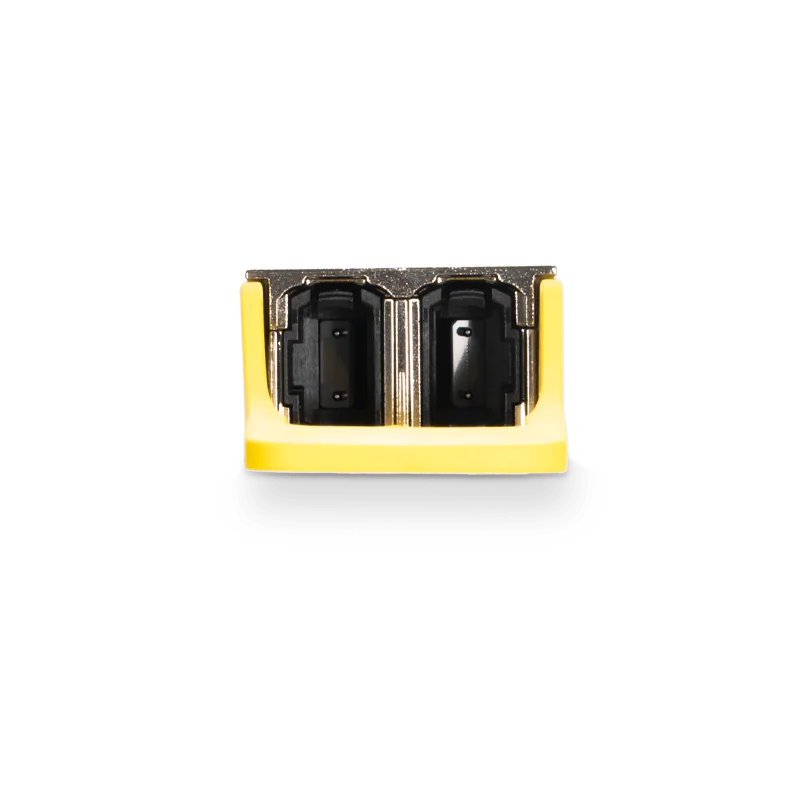

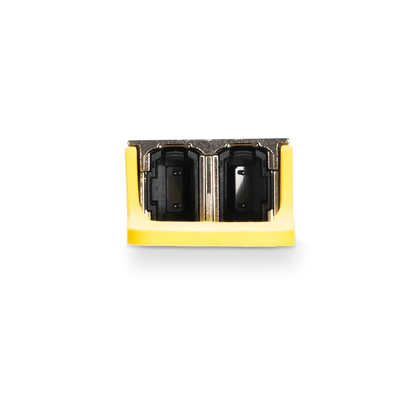

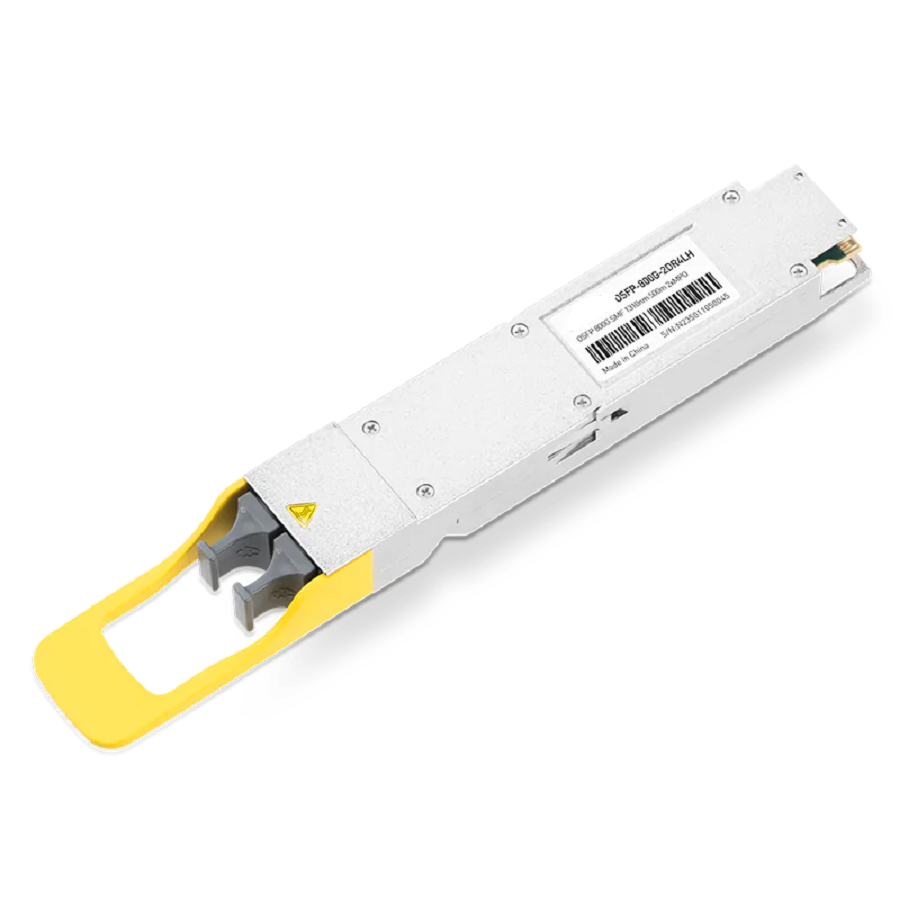

SFPS NVIDIA/Mellanox MMS4X00-NM Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 500m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Finned Top)

Model OSFP-800G-2DR4LH

Product SKU

SKU:SFPS-OSFP-800G-2DR4LH-164704

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

SFPS OSFP-800G-2DR4LH Optical Transceiver Module is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 100G-PAM4 modulation and has a maximum fiberreach of 500-meters using 8 single mode fibers. The Twin-port 2xDR4/DR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage. The main application for OSFP-800G-2DR4LH is linking two switches together with up to 500 meters.

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.

View full details

PRODUCT REFERENCE

Know exactly what you’re ordering.

SFPS NVIDIA/Mellanox MMS4X00-NM Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 500m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Finned Top)

Use these details when discussing your requirements with SFPS.

Brand / vendor: SFPS
SKU / reference: SFPS-OSFP-800G-2DR4LH-164704
Model choices: OSFP-800G-2DR4LH
Ordering help: Contact Us ↗

PRODUCT & ORDERING HELP

Questions before you order?

Will this work with my installation?

Compatibility depends on the exact product and configuration. Share your equipment model, interfaces and application with SFPS before ordering.

How do I confirm availability and delivery?

Send your required configuration, quantity, destination and target date. Ask SFPS to confirm availability and lead time for your order.

What should I include in a quotation request?

Include the product reference, required options, quantity, delivery location and any technical requirements. The enquiry button prepares an email with this product’s name and link.

Lifetime warranty

Long-term confidence in your purchase, subject to the applicable product warranty terms.

100% tested

Pre-shipment testing to help you deploy with confidence.

GCC delivery

Ask about same-day delivery, subject to stock, order cut-off and destination.
