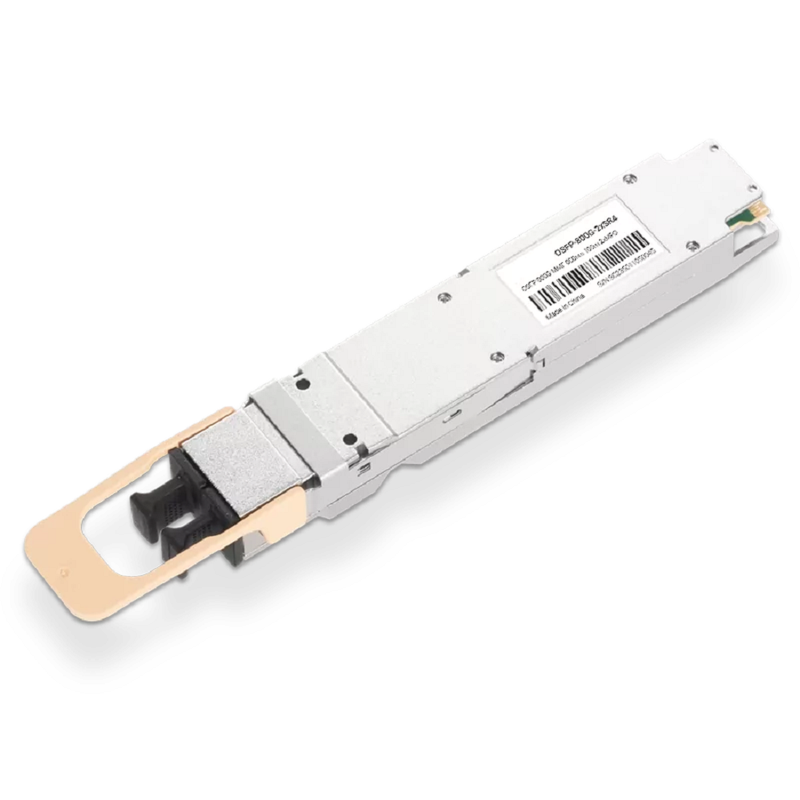

SFPS Generic Compatible Coherent VCSEL & Broadcom DSP 800G OSFP 2xSR4/SR8 850nm 100m PAM4 DOM MPO/MTP MMF Transceiver Module

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

SFPS Generic compatible OSFP-800G-2xSR4 is an Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, SR8 multimode, parallel, 8-channel transceiver using two 4-channel MPO-12/APC optical connectors at 400Gb/s each. Built-in Coherent VCSEL & Broadcom DSP, the module performs high-speed electrical-to-optical and optical-to-electrical conversion across 8 parallel lanes, enabling an aggregate data rate of 800Gb/s over multimode fiber for short-reach data center interconnects. The Twin-port SR8 transceiver is a key innovation with two internal transceiver engines enabling 64 ports of 400Gb/s in a 32-OSFP cage switch. It supports flexible 800G-to-2×400G breakout deployment, making it well suited for high-density spineœleaf and rack-level architectures where scalable bandwidth, efficient port utilization, and low-latency connectivity are required.

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
