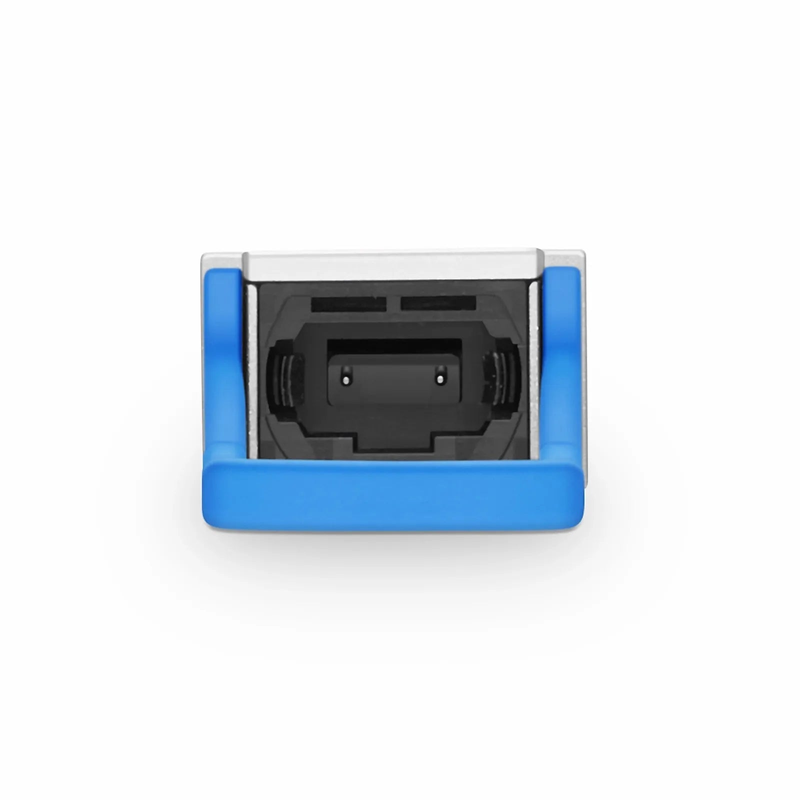

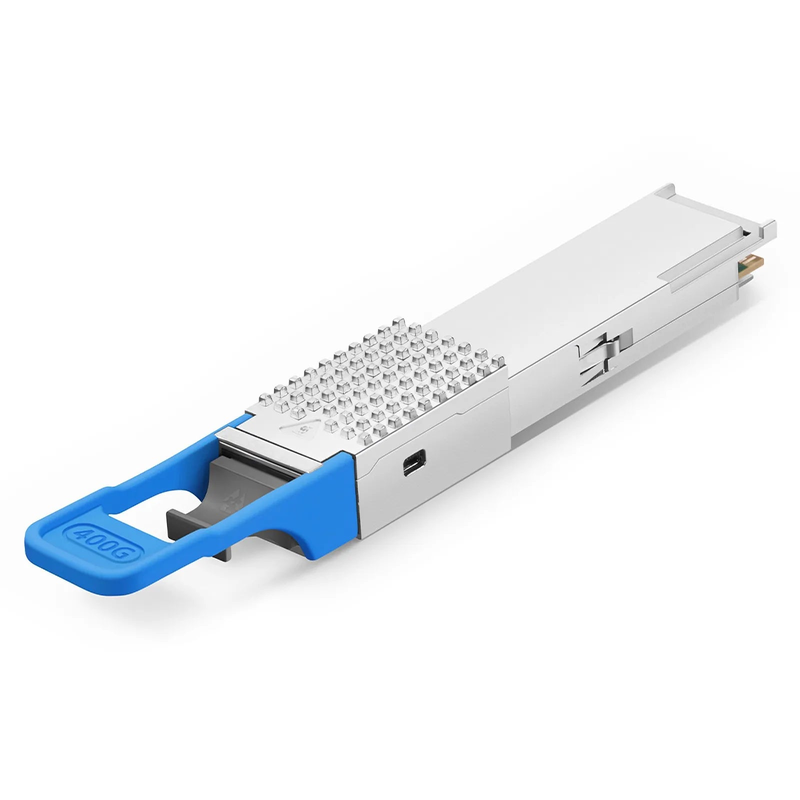

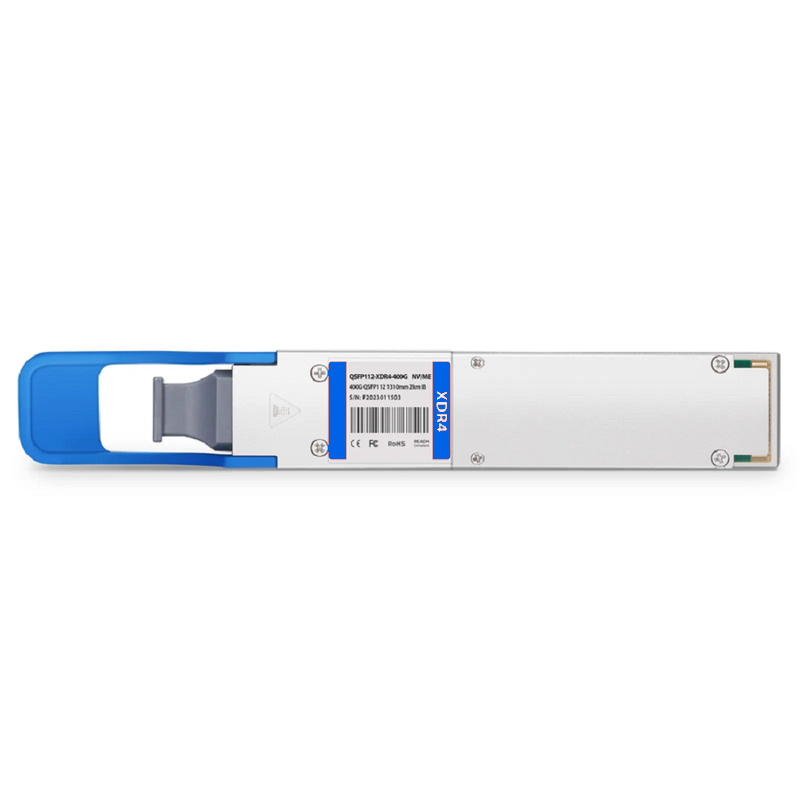

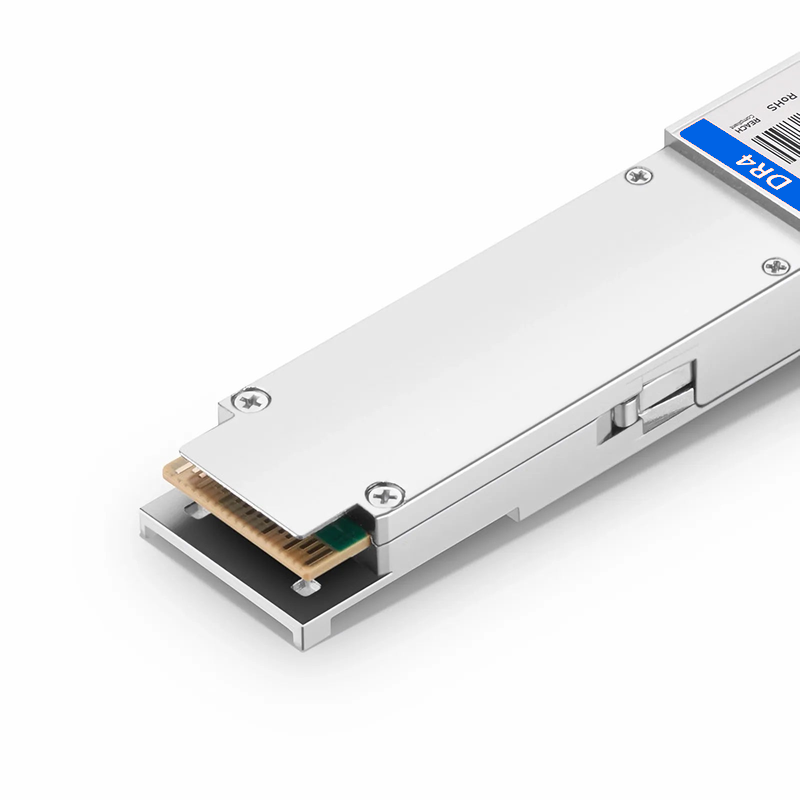

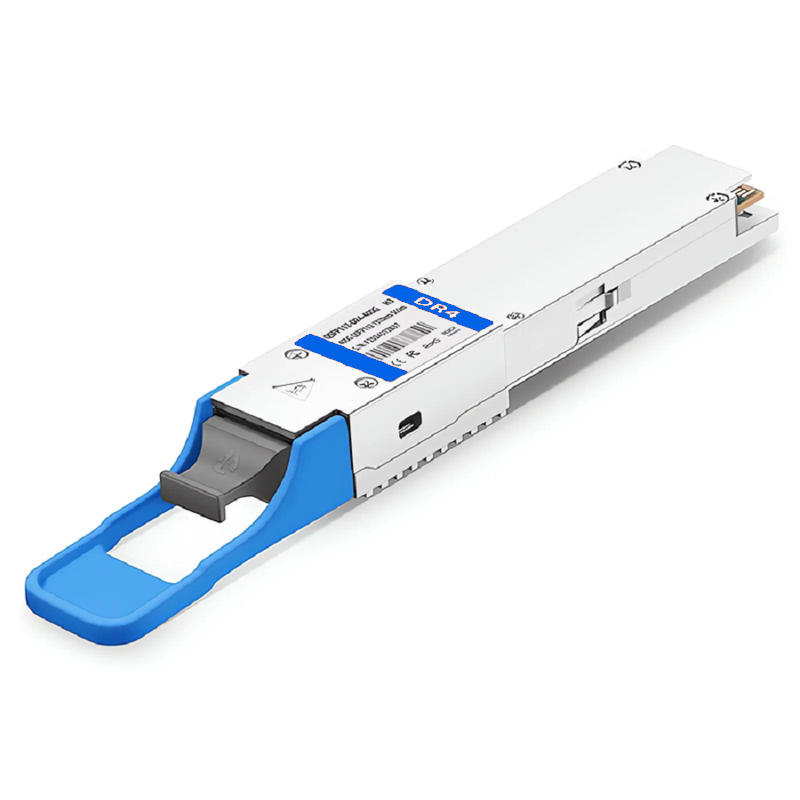

SFPS Broadcom Compatible 400GBASE-DR4 QSFP112 4 x 100G PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 100G-DR

Description

SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

The Broadcom compatible QSFP112 optical transceiver is an 400Gb/s single-port QSFP112, DR4 single-mode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The short reach 4-channel (DR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters using OS2 single-mode fibers. The QSFP112 transceiver can be used in QSFP112/QDD switches as well as in ethernet adapters. Featured with low latency, low power, and reliability, it can link upward in spine-leaf architectures to 800G Ethernet switches. It can also interconnect with 400G QSFP-DD or OSFP DR4 to meet diverse application scenarios. When connected to a 1:2 splitter fiber cable, there are only 2 channels on the split end and only 2-channels in the 400G transceiver will be activated, automatically producing 200G speeds and reducing power. It is an ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnection.

SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
