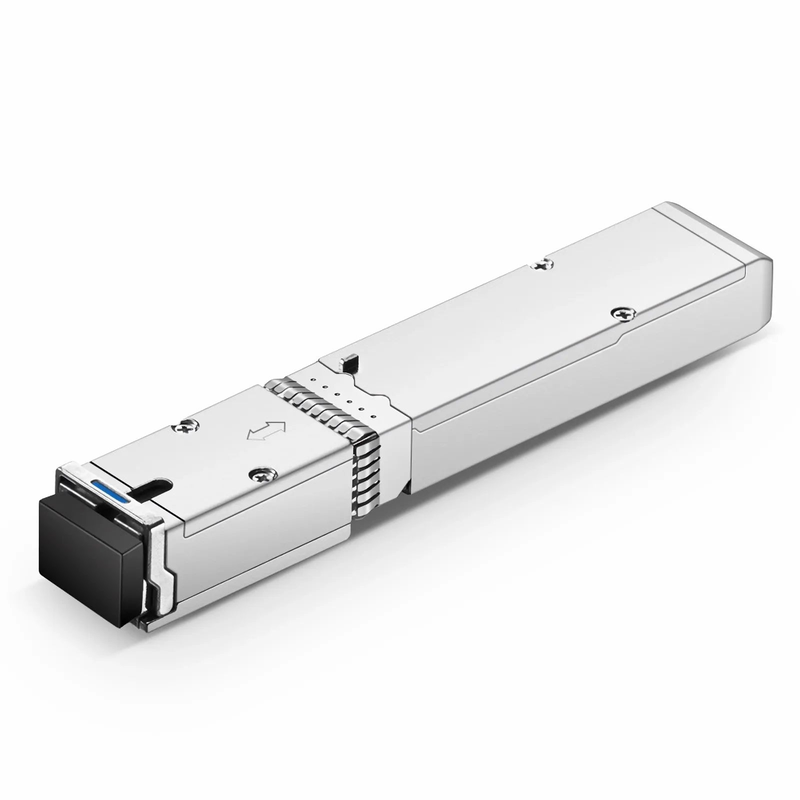

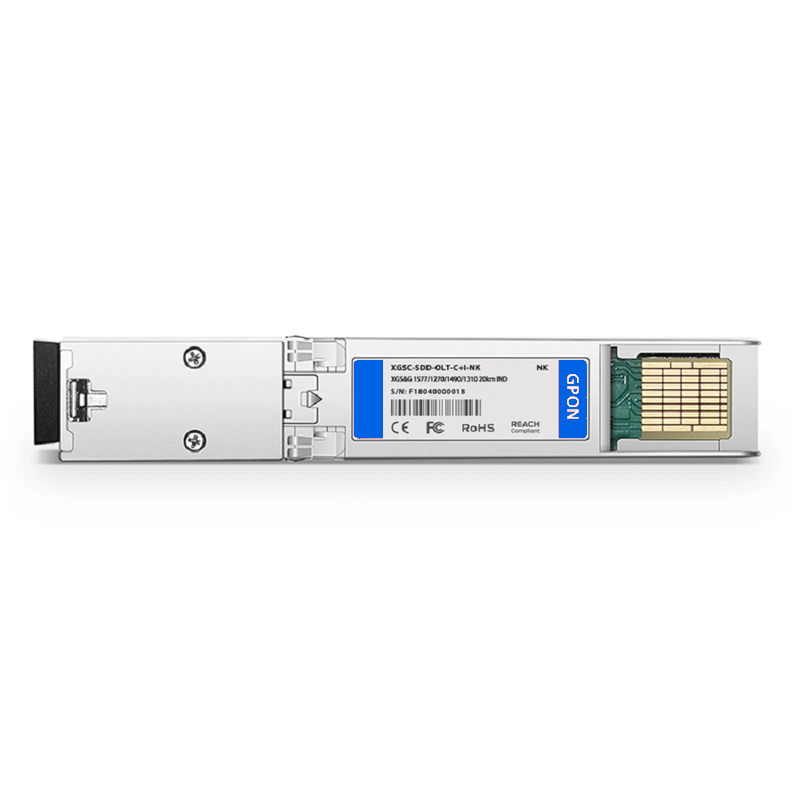

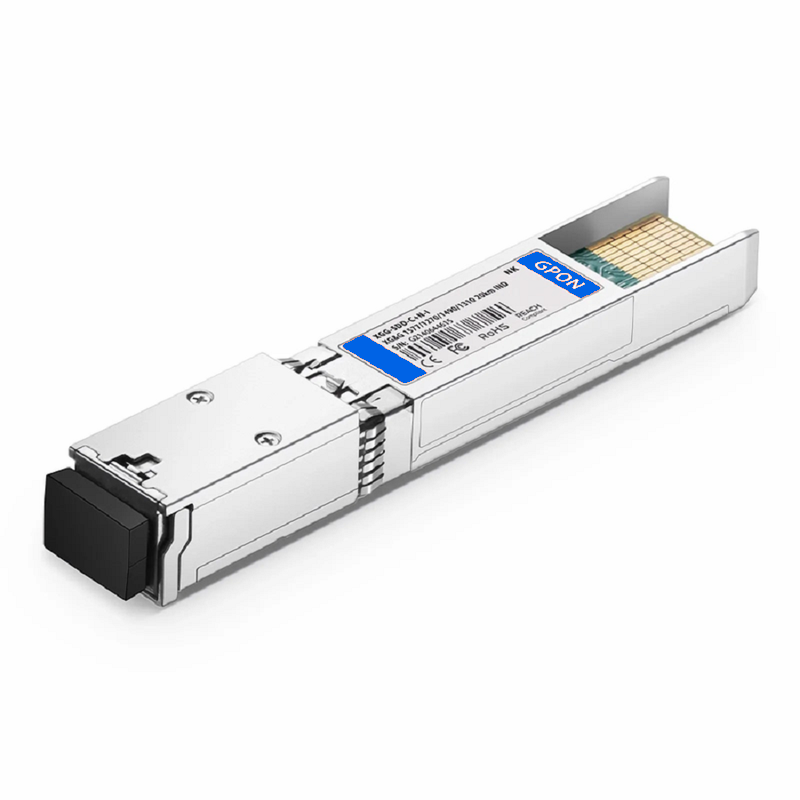

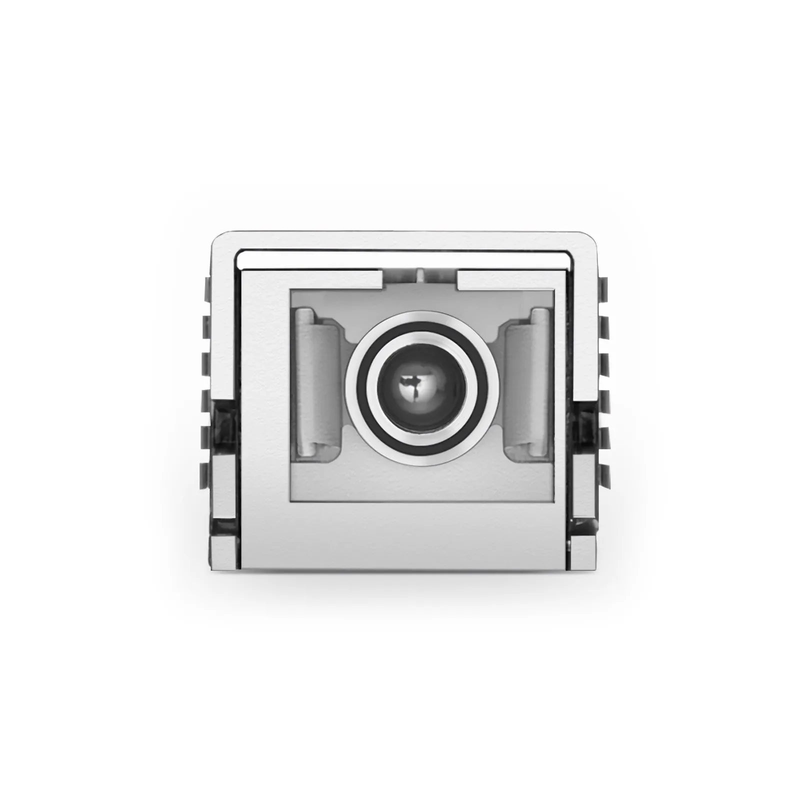

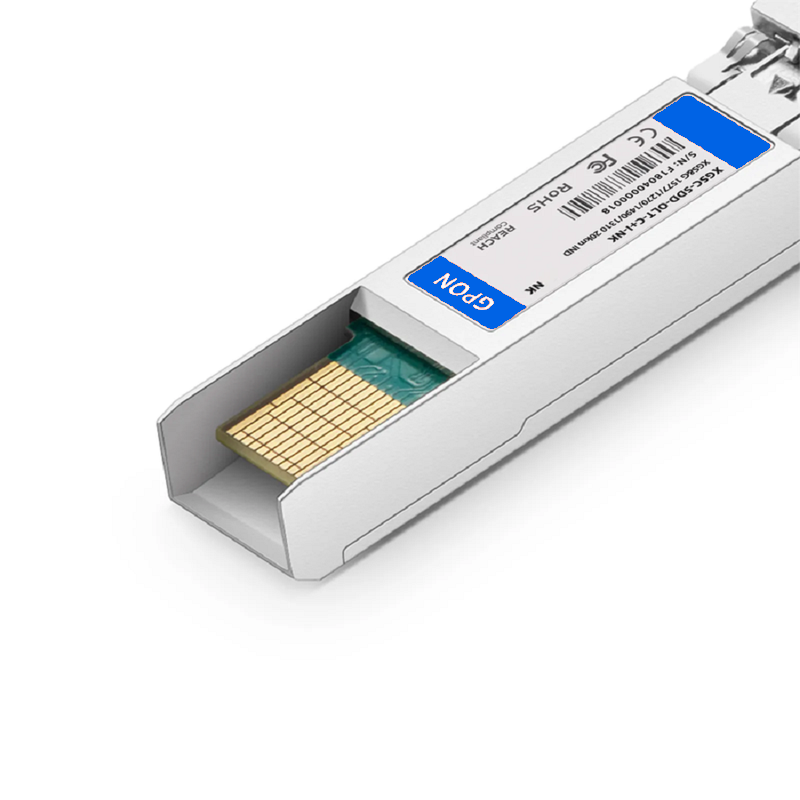

SFPS Calix Compatible XGS-PON&GPON Combo OLT SFP-DD 1577nm-TX/1270nm-RX and 1490nm-TX/1310nm-RX Class C+ 20km DOM Simplex SC/UPC SMF Optical Transceiver Module (Industrial)
XGS-PON&GPON OLTSFP-DD, C+, Ind
$434.00
Sale price
$434.00
Regular price
$559.00
Skip to product information
SFPS Calix Compatible XGS-PON&GPON Combo OLT SFP-DD 1577nm-TX/1270nm-RX and 1490nm-TX/1310nm-RX Class C+ 20km DOM Simplex SC/UPC SMF Optical Transceiver Module (Industrial)
SKU
SFPS-XGS-PON&GPON-OLTSFP-DD-C-Ind-46921
Description
SFPS delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.
The Calix Compatible 10G-TX/10G(2.5G)-RX & 2.5G-TX/1.25G-RX transceiver module is specifically designed for 10-Gigabit-capable Symmetric Passive Optical Network (XGSPON&GPON) system. It integrates bidirectional data transmission over one single-mode optical fiber. The XGSPON Combo OLT Small Form-Factor Pluggable Double Density (SFP-DD) transceiver provides a symmetric 9.953Gbps, 2.488Gbps & 1.244Gbps upstream and 9.953Gbps & 2.488Gbps downstream data rate, reaching a link up to 20km via an SC/UPC connector. It can operate at temperatures between -40 to 85. Digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is fully compliant with ITU-T G.984.5, ITU-T G.987.2, ITU-T G.984.2, SFP-DD MSA.
SFPS is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
PRODUCT REFERENCE
Know exactly what you’re ordering.
SFPS Calix Compatible XGS-PON&GPON Combo OLT SFP-DD 1577nm-TX/1270nm-RX and 1490nm-TX/1310nm-RX Class C+ 20km DOM Simplex SC/UPC SMF Optical Transceiver Module (Industrial)
Use these details when discussing your requirements with SFPS.- Brand / vendor
- SFPS
- SKU / reference
- SFPS-XGS-PON&GPON-OLTSFP-DD-C-Ind-46921
- Model choices
- XGS-PON&GPON OLTSFP-DD, C+, Ind
- Ordering help
- Contact Us ↗
PRODUCT & ORDERING HELP
Questions before you order?
Will this work with my installation?
Compatibility depends on the exact product and configuration. Share your equipment model, interfaces and application with SFPS before ordering.
How do I confirm availability and delivery?
Send your required configuration, quantity, destination and target date. Ask SFPS to confirm availability and lead time for your order.
What should I include in a quotation request?
Include the product reference, required options, quantity, delivery location and any technical requirements. The enquiry button prepares an email with this product’s name and link.
